Intellijel 7U 104HP Performance Case V2 (Stealth)

This is the latest model V2 with keyed power headers.

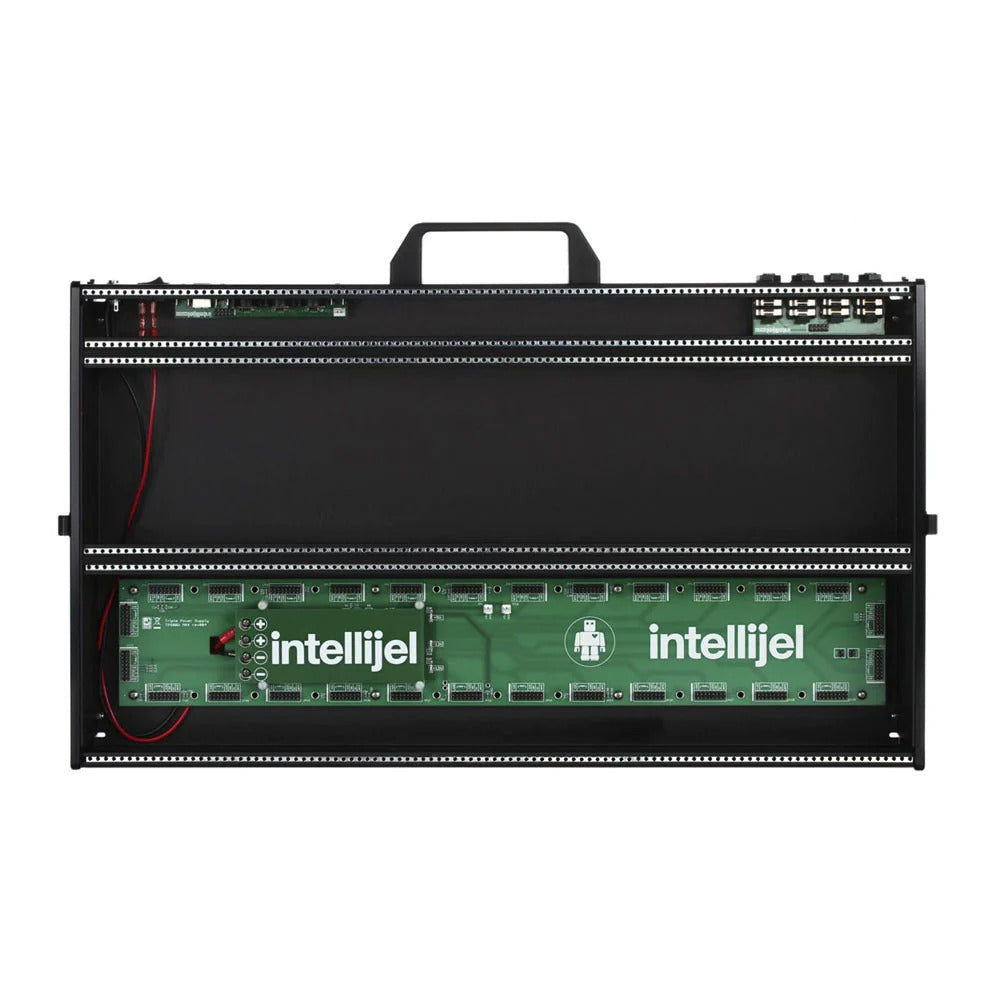

The Intellijel 7U 104HP Performance Case is a Eurorack case that includes the TPS80WMAX power supply capable of powering up to 28 modules with +12 V output at 3000 mA, -12 V output at 3000 mA and +5 V output at 1500 mA.

FEATURES:

• Carrying handle

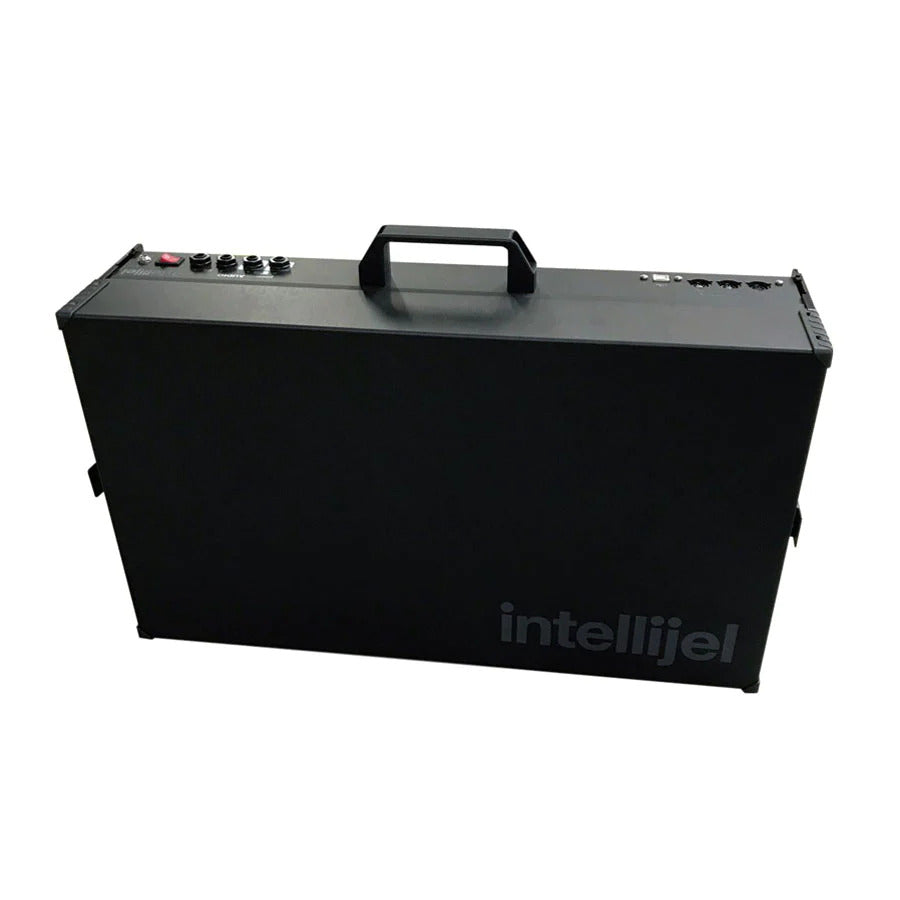

• Anodized aluminum lid with latches, deep enough to close the case with cables patched in
• Retractable feet that can support the case at two different angles, or lay the case flat on a table
• Plastic feet for resting the case on the table
• Rubber feet on bottom side of lid so the case can stand vertically with the lid attached
• Spring-loaded latching accessory slots on top and bottom of the case, the slots can be used to attach two cases together and for the carrying strap
• Four 1/4″ audio jacks that can be connected to the Audio I/O 1U, two ins and two outs
• MIDI In, Out, and Thru jacks, the In jack can be connected to the µMIDI 1U and will pass to the Thru, the Out is for future expansion
• USB port that connects to the µMIDI 1U and other future modules
• Rocker switch and barrel plug for power entry
