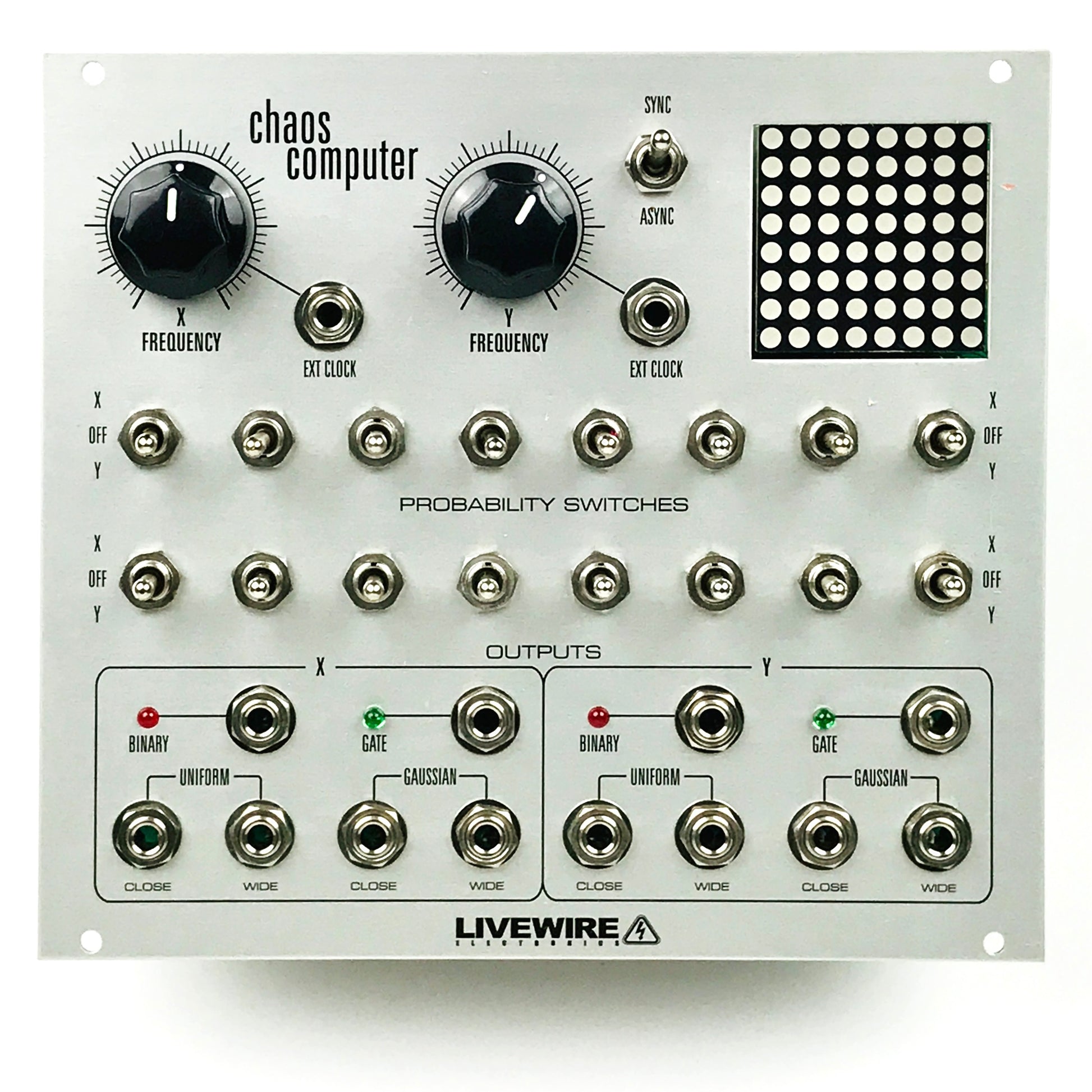

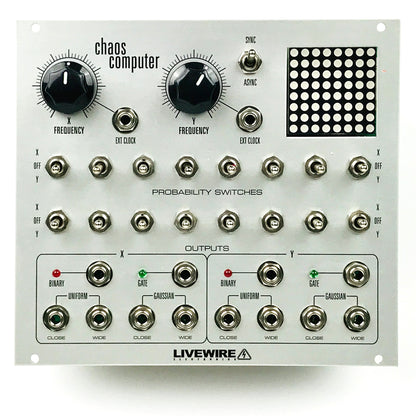

Livewire Chaos Computer

8 Channels Random Voltage Source with Expansion Options

The Chaos Computer generates 8 simultaneous random stepped voltages.
There are 4 outputs from the X Random Generator and 4 outputs from the Y Random Generator.
The X and Y Random Generators receive their instructions from 16 PROBABILITY input switches on the control panel.
The rate and amount of change is fed back via a 64 LED Matrix Display.

The X and Y Random Generators have independent internal clocks, independent EXTERNAL clock inputs, with a SYNC / ASYNC option.
Each of the Random Generators 4 stepped voltage outputs are further subdivided by 2 UNIFORM and 2 GAUSSIAN stepping modes.
