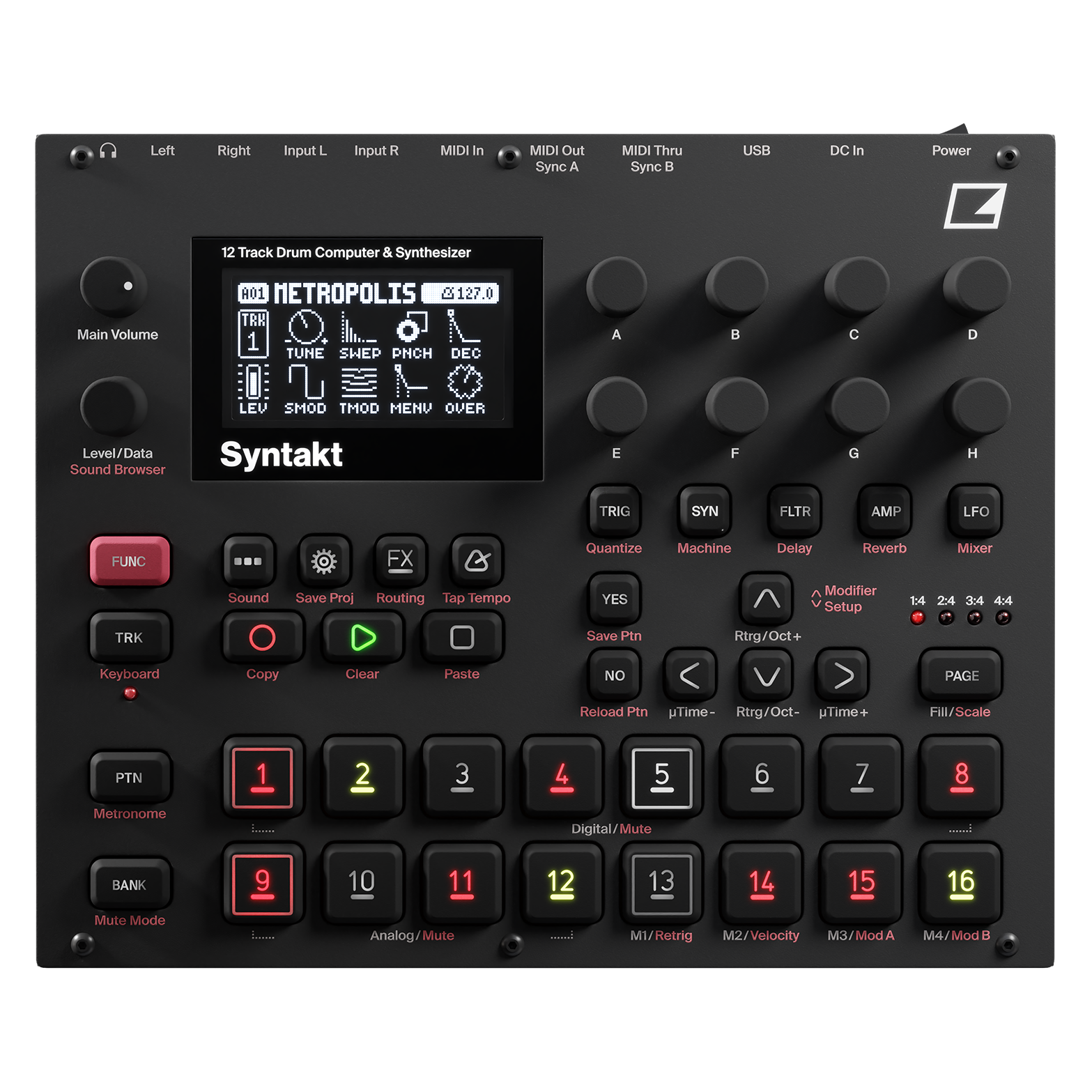

Elektron Syntakt

Syntakt

12 track drum computer & synthesizer

Key features

• 12 track drum computer & synthesizer / 12 MIDI tracks
• Fusion of digital and analog synthesis
• Fully sequenceable FX track
• Four modifiers to quickly trigger parameter settings
• 1 Multimode filter (Analog & Digital), 1 Base-width filter per digital voice, 2 assignable LFOs per track
• 64-step Elektron sequencer
• Song Mode lets you create, edit & play compositions

Specifications

Digital track features (×8)

• 11 × selectable machine:
  1 × Bass drum
  2 × Snare drum
  1 × Cymbal/hihat
  1 × Percussion
  1 × Clap
  5 × Tonal synths
• 1 × digital overdrive per track
• 1 × digital multimode filter per track
• 1 × digital base-width filter per track
• 2 × assignable LFOs per track
• Switchable to MIDI machine

Analog Drum track features (×3)

• 16 × selectable machine:
  6 × Bass drum
  4 × Snare drum
  2 × Rimshot
  2 x Tonal synths
  1 × Impulse
  1 × Noise generator
• 1 × analog overdrive per track
• 1 × analog multimode filter per track
• 2 × assignable LFOs per track
• Switchable to MIDI machine

Analog Cymbal track features (×1)

• 12 × selectable machine
  5 × Hihat
  3 × Cymbal
  2 × Cowbell
  1 × Impulse
  1 × Noise generator
• 1 × analog overdrive per track
• 1 × analog multimode filter per track
• 2 × assignable LFOs per track
• Switchable to MIDI machine

FX track features (×1)

• Delay and reverb automation
• Analog stereo overdrive
• Analog stereo multimode filter
• 2 × assignable LFOs
• Assignable to each track
• External in

Performance features

• 1 × Retrig modifier
• 1 × Velocity modifier
• 2 × Assignable trig modifiers
• Keyboard mode with 36 different scales

MIDI Machine features

• 4 note polyphony per step
• 8 × assignable CC controls
• 1 × assignable LFOs per track

Sequencer features

• 64 steps per pattern and track
• Individual pattern length per track
• Individual time scale multiplier per track
• Parameter locks
• Trig conditions & trig chance
• Retrig
• Micro timing

Send effects

• Delay
• Reverb

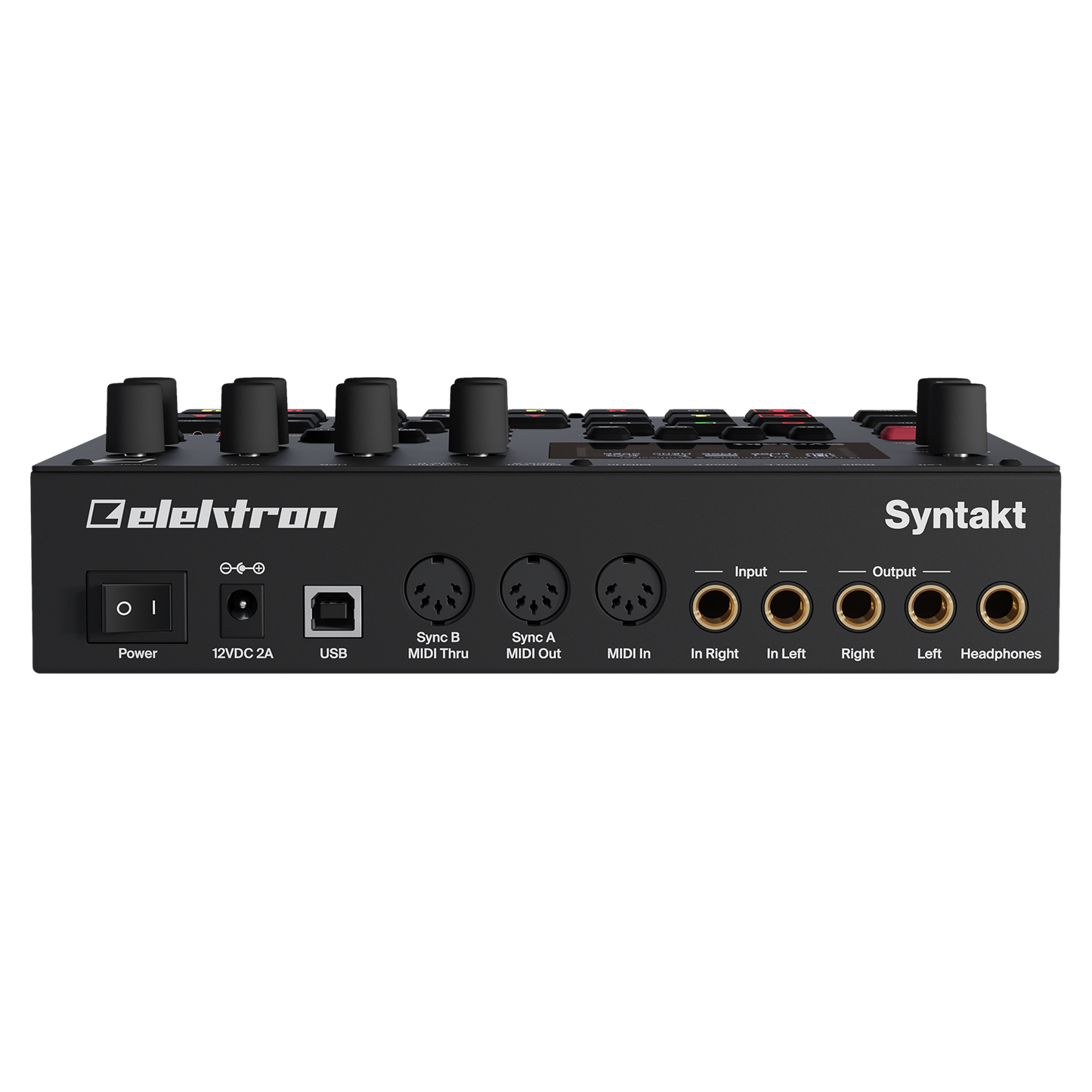

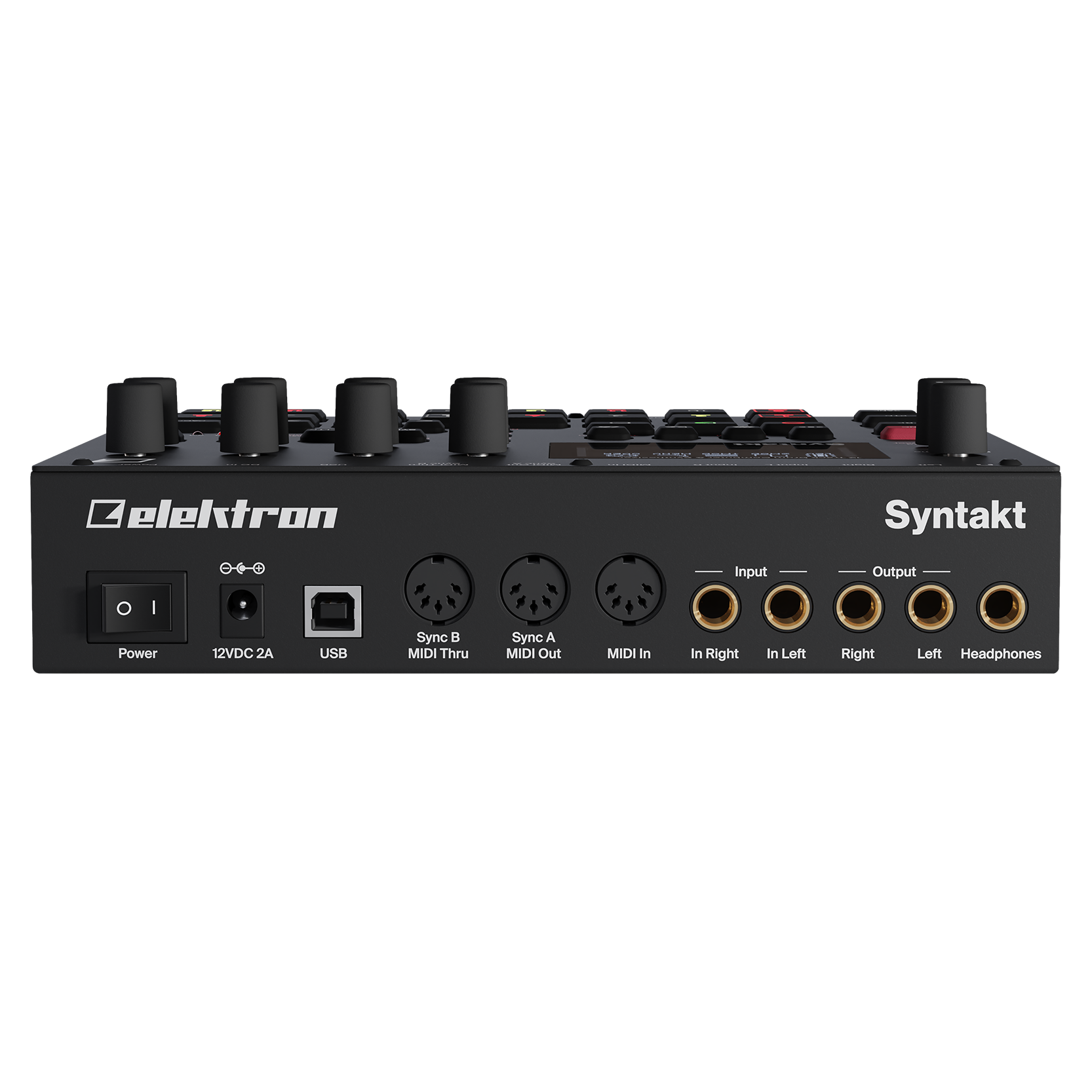

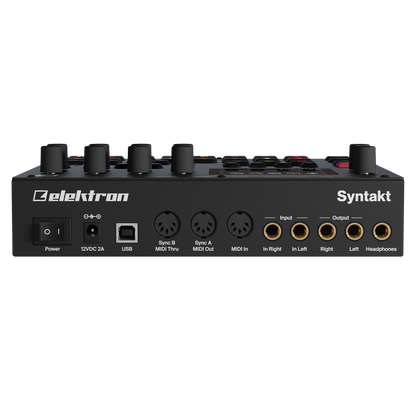

Hardware

• 128 × 64 pixel OLED screen
• 2 × ¼” impedance balanced audio out jacks
• 2 × ¼” audio in jacks
• 1 × ¼” stereo headphone jack
• 48 kHz, 24-bit D/A and A/D converters
• Hi-Speed USB 2.0 port
• MIDI In/Out/Thru with DIN Sync out

Physical specifications

• Sturdy steel casing
• Dimensions: W 215 × D 176 × H 63 mm (8.5″ × 6.9″ × 2.5″) (including knobs and feet)
• Weight: approximately 1.53 kg (3.6 lbs)
• 100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm.

Miscellaneous

• Overbridge enabled
• Class Compliant USB Audio
• External Input mixer
• 3 year Elektron warranty

Included in the box

• Power Supply PSU-3c
• Elektron USB cable
• Quick Guide
• Exclusive artwork & epic stickers
