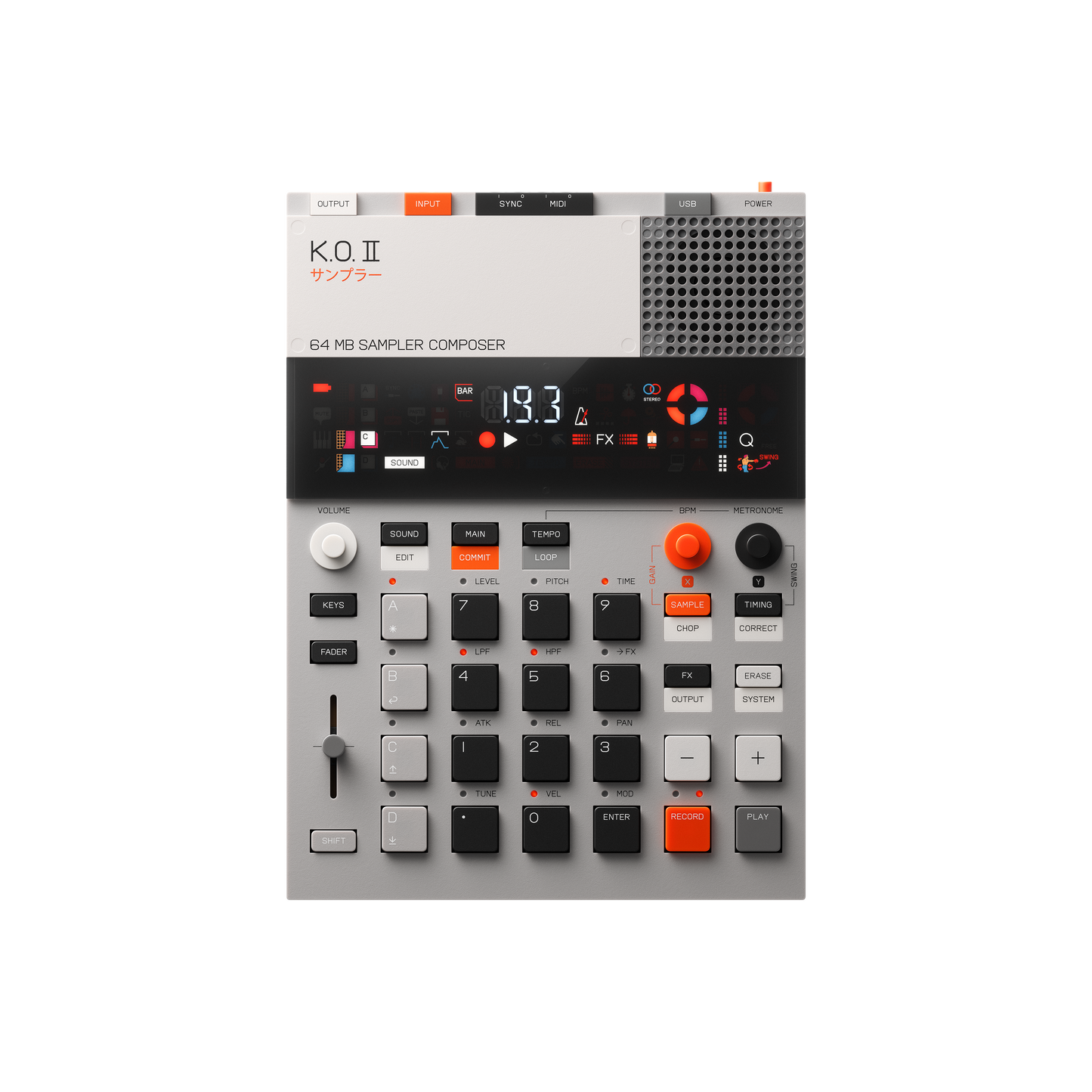

Teenage Engineering EP–133 K.O. II

• EP–133 K.O. II is a powerful sampler, sequencer and composer. record sounds around you, sequence your samples and loops, tweak and automate filter, pitch and more, add stereo effects, compressor and next generation punch-in effects - go from idea to track faster than ever.
• built-in mic and speaker
• 6 stereo voices / 12 mono
• 64 MB memory, or 999 sample slots
• built-in effects
• pressure sensitive keys and multifunctional fader
• sampling frequency: 46 kHz / 16-bit
• 1x stereo in/out, sync in/out, midi in/out and usb-c
• powered by 4x AAA batteries, or via usb
• dimensions: 240 mm x 176 mm x 16 mm
• comes in a limited edition 10" collectors box

knock out features

• 9 projects each with 80,000 notes
• projects contain 4 groups, each with 99 patterns
• patterns have 12 tracks for samples and midi
• variable pattern length per group (1 to 99 bars)
• 12 mono / 6 stereo voice polyphony
• use groups to mix and match patterns on the fly
• record and automate all 12 fader assignments
• sequence in free time or quantized with swing
• assign any pad to one of 16 midi channels
• loop mode from OB–4 with length and slide
• 12 pressure and velocity sensitive pads
• instantaneous time correction and erase
• slice samples live or automatically
• stereo / mono sampling at 46.875 kHz / 16-bit
• punch-in 2.0™ effects (pressure sensitive)
• arrange quickly using the instant commit feature
• 32-bit float signal chain, 24-bit adc/dac
• sync io for ext. gear. 8th, 16th note or sync24
• 6 built-in send fx and a master compressor
• drag and drop samples using the sample tool

the sequencer engine of the K.O. II provides an intuitive, fast way of building up beats and variations using 4 groups x 12 patterns. like most daws, you can instantly swap patterns per group, experiment with different combos to find what beat and bass lines work together. the commit button helps you freeze a point in time and move on, adding a verse or a break. it all happens in real time while playing.

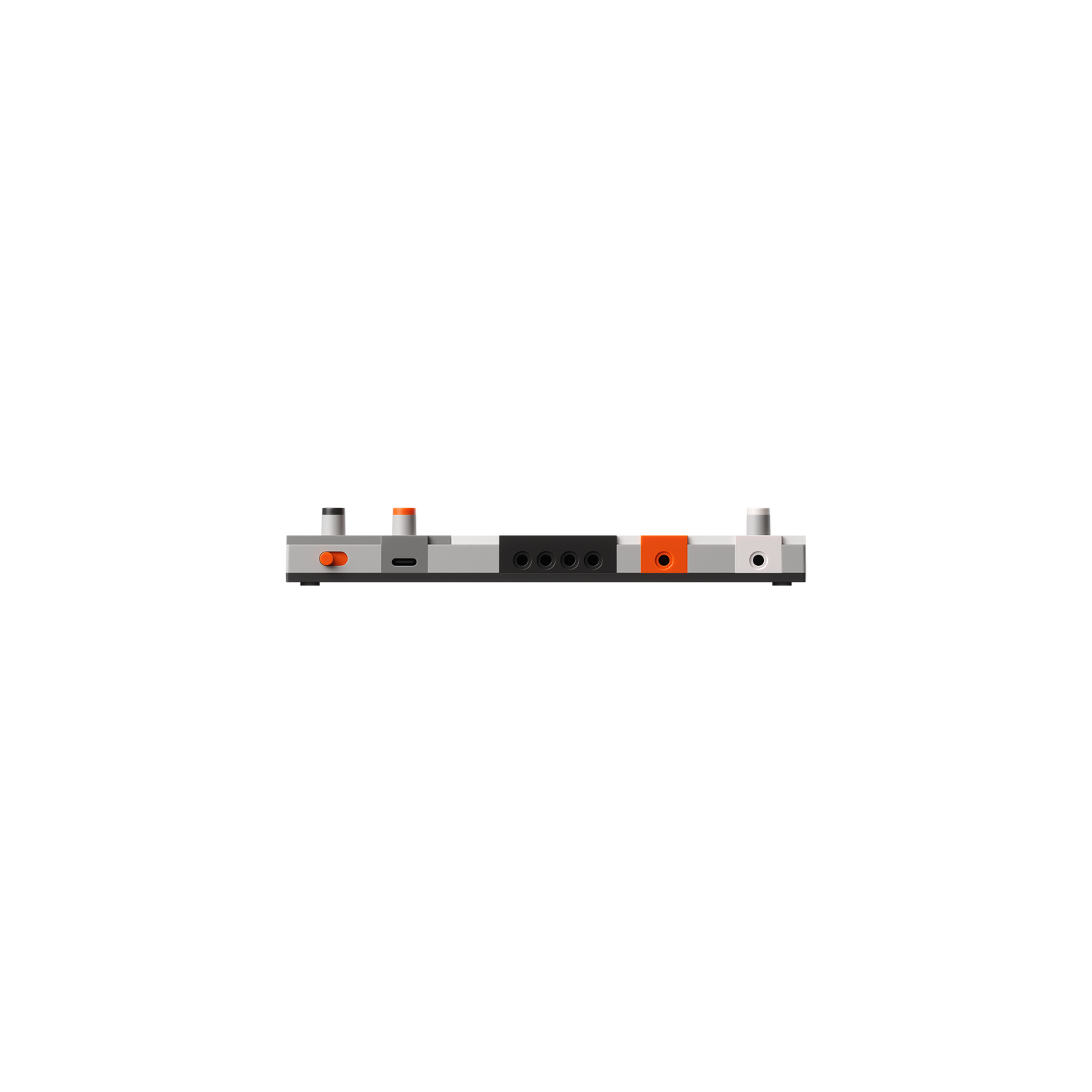

IO

• built-in mic and speaker
• usb–c
• midi output
• midi input
• sync output
• sync input
• audio input
• audio output
• 4x aaa batteries

one-two punch

vintage style keys with a modern touch, combining tactility with pressure sensitivity.

10" EP format

comes in a limited edition 10" collector's box

tech specs:

K.O.II highlights

• sampling frequency: 46 kHz / 16-bit
• internal signal chain: 32-bit
• 999 sample slots
• 64 MB memory
• preset samples
• high resolution sequencer
• built-in FX
• fader and pressure sensitive pads
• six stereo voices, twelve mono
• runs on (4) AAA batteries with the option to be powered via usb-c (batteries and usb-c cable not included).

dimensions and weight

• 240 mm x 176 mm x 16 mm
• 9.45" x 6.93" x 0.63" inches
• 620 g / 22 oz

stereo input

• 24 bit
• SNR: 96 dBA
• analog gain: 0 - 12 dB
• max level: 8 dBu, 2.0 Vrms

Stereo Headphone/Line Output

• 24 bit
• SNR: 98 dBA
• max level: 5 dBu, 1.4 Vrms

MIDI input and output

• trs type a, mma compliant

Sync input and output

• sync 8 ppm, 16 ppm, 24 ppqn
• start / stop
