Expert Sleepers ESX-8CV CV Expander MK2

In order to squeeze eight 12 bit channels through one 8 bit connection, the channels are time-multiplexed and so effectively run at between one-third and one-twenty fourth of the audio sample rate. For example, if the audio interface/DAW is running at 48kHz, the ESX-8CV's outputs are running at between 16kHz and 2kHz, depending on how many channels are active. This is still plenty fast enough for most CV purposes, except for audio-rate modulation and the very fastest envelopes. Because the outputs are still derived from the audio stream, they retain the advantages of the ES-3/4 over traditional MIDI-based interfaces, that is, rock solid timing and absence of jitter.

The outputs are hardware calibrated and so do not require the use of e.g. Silent Way's software calibration when used with standard V/octave synths/oscillators. That said, the ESX-8CV's 12 bit resolution is adequate to perform software calibration if required (e.g. to cater for misbehaving oscillators that don't track well to a standard calibration), or to support oscillators with a Hz/V response.

Specifications

The ESX-8CV's specifications are as follows:

• Panel width: 4HP
• Module depth: 49mm
• Digital input: connection from ES-4, ES-40 or ES-5 module
• Analogue outputs: 8x 3.5mm jacks, DC-coupled
• Output voltages: ±5.33V hardware calibrated, or ±9.5V uncalibrated (jumper setting)
• D/A conversion: 12 bit, using high precision Analog Devices DACs
• Indicators: illuminated jack sockets
• Current draw: 41mA on the +12V rail, 33mA on the -12V rail

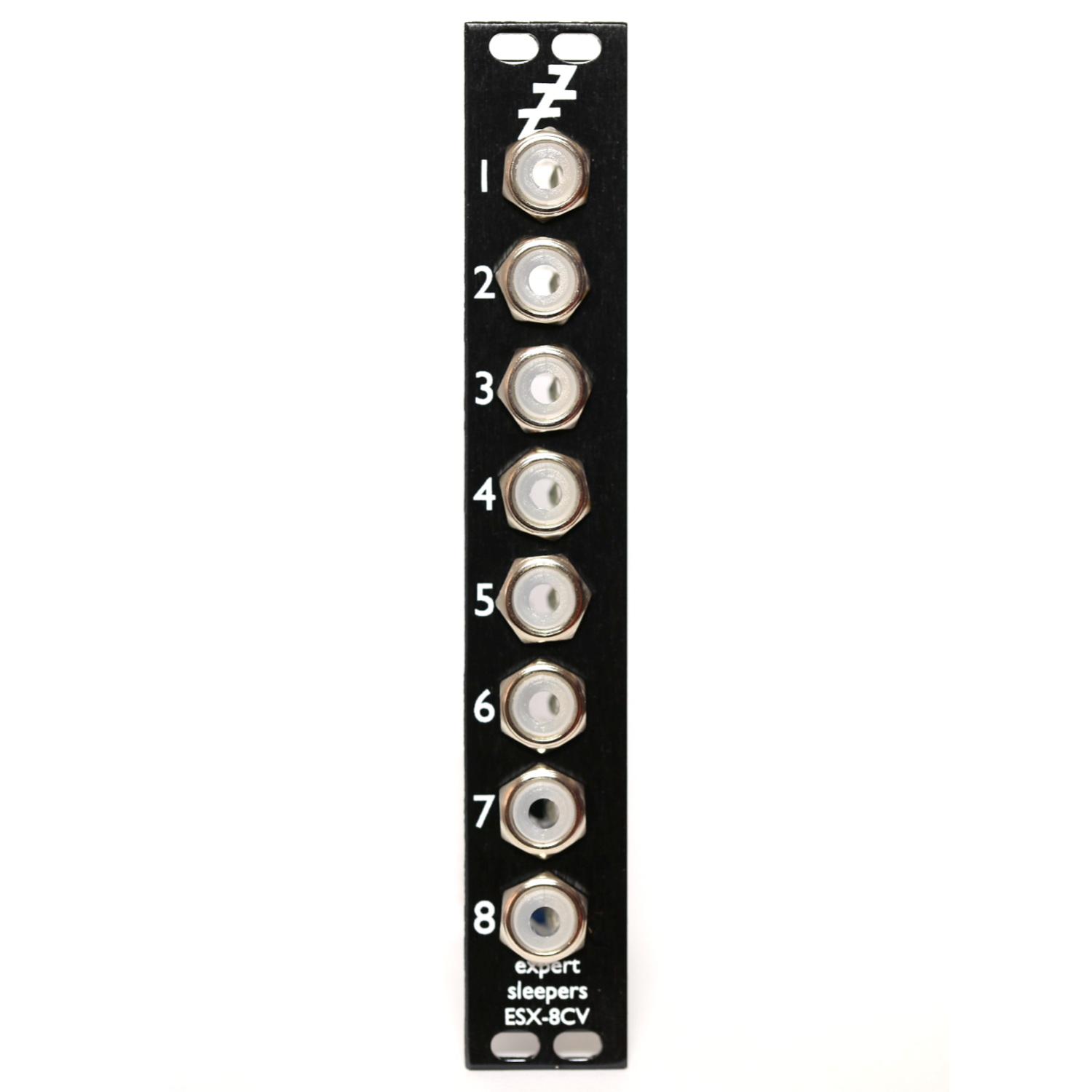

The front panel is drilled for both Doepfer and Analogue Systems mounting holes (using a 'slot' rather than a single round hole). The power connector is a Doepfer standard 16 way IDC, with -12V furthest from the top of the board.
