Expert Sleepers Pandora

Expert Sleepers Pandora

$ 199.00 USD
$ 199.00 USD
Sale Sold out
Shipping calculated at checkout.

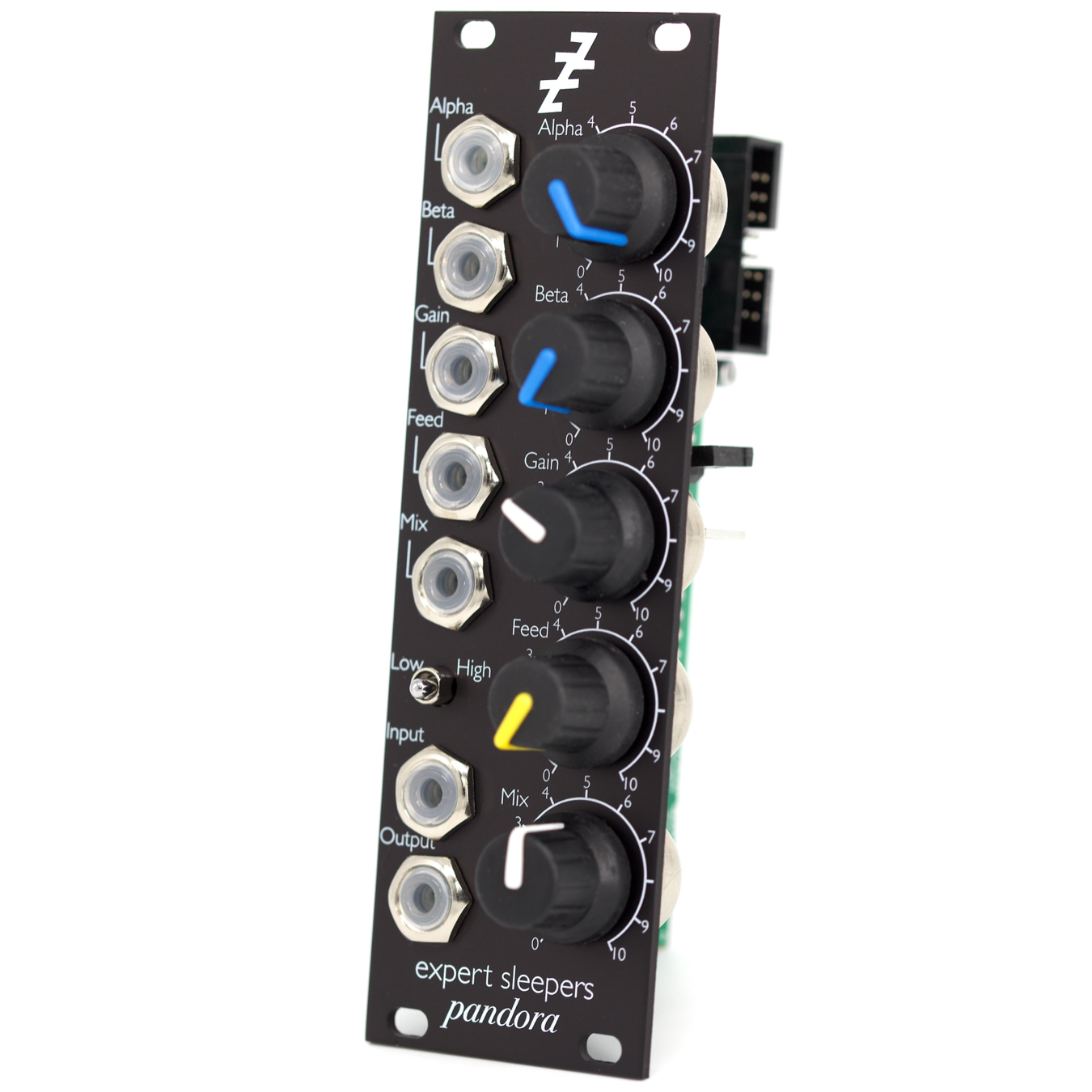

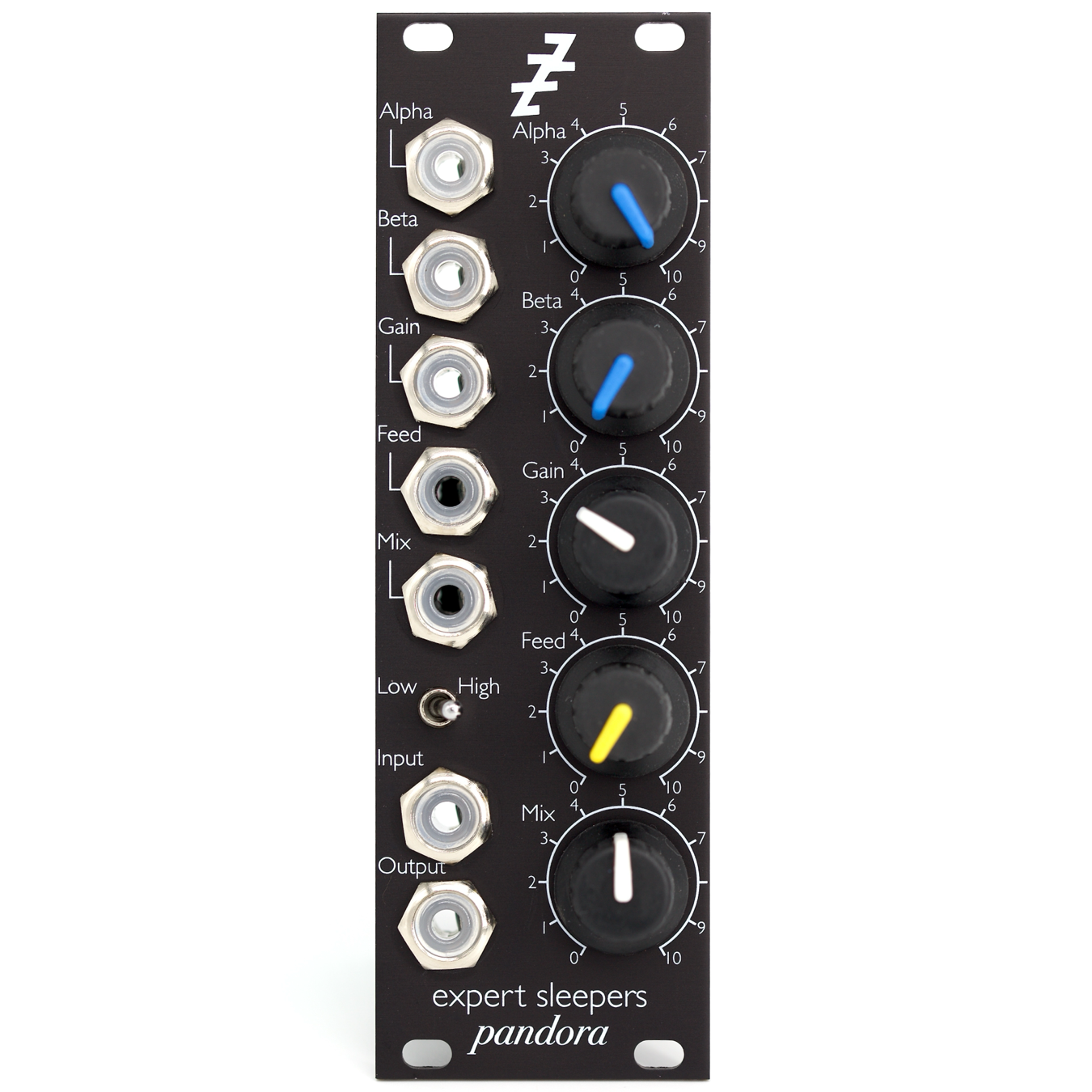

'Pandora' is a bandpass filter/distortion processor, based on an unusual combination of power MOSFET transistors and vactrols. Voltage control is provided over the two sides of the filter, the gain, and the filter feedback. A wet/dry mixer is provided, also under voltage control.

A range switch is provided to drop the filter response several octaves, at which point the module becomes capable of synthesising percussion sounds when fed trigger pulses.

The module is 100% analogue.

Specifications

Pandora's specifications are as follows:
  • Panel width: 8HP
  • Module depth: 42mm
  • Current draw: 69mA on the +12V rail, 58mA on the -12V rail
  • Inputs:
    • CV inputs for filter Alpha, filter Beta, gain, feedback, and mix
    • Audio input
  • Outputs:
    • Audio output
The vactrols used in Pandora are compliant with RoHS legislation.
