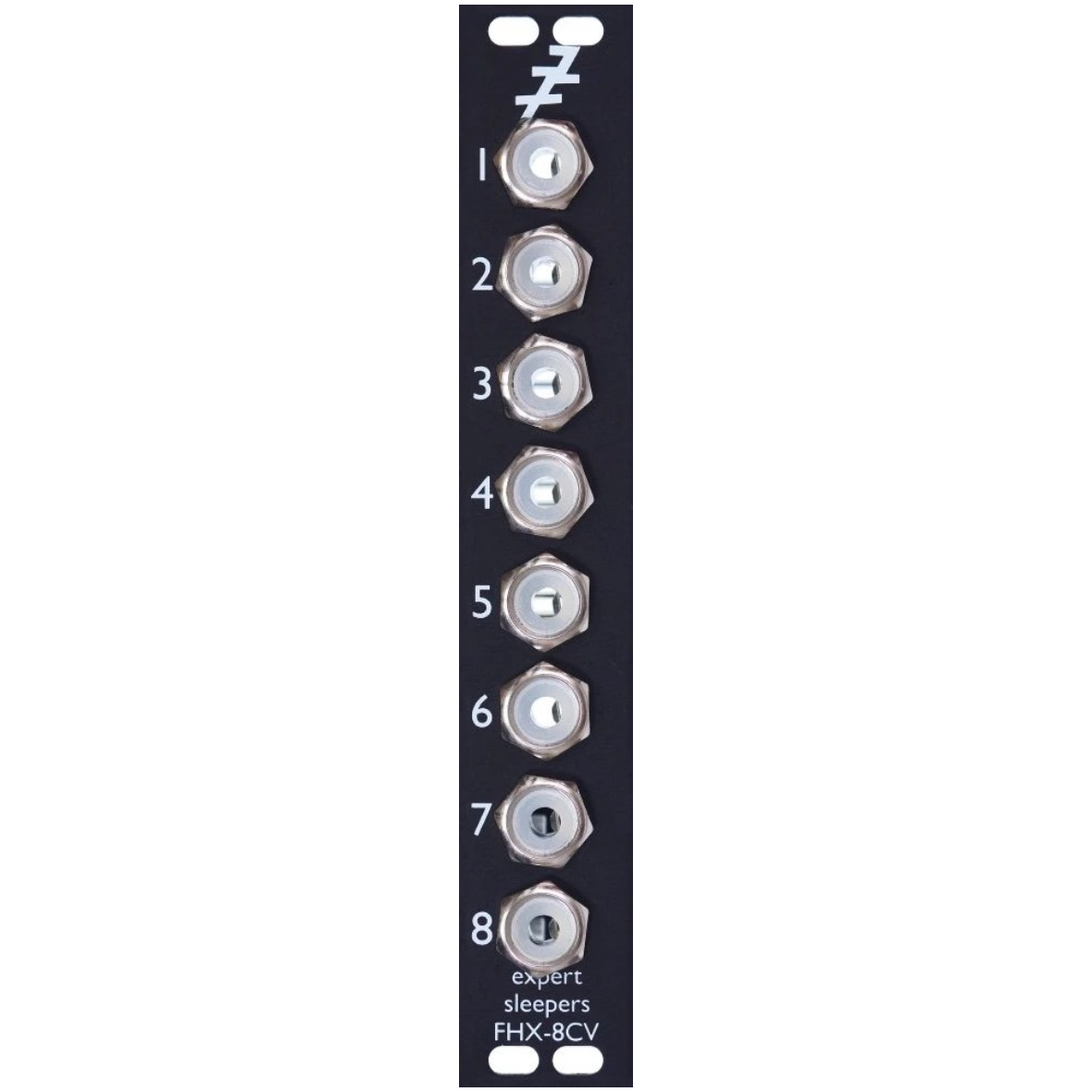

Expert Sleepers FHX-8CV

Expert Sleepers FHX-8CV

Regular price $ 149.00 USD
Regular price Sale price $ 149.00 USD
Sale Sold out
Shipping calculated at checkout.

The FHX-8CV is an expansion module for the FH-2 'factotum' Eurorack module, providing 8 extra CV outputs.

Up to seven FHX-8CVs can be attached to one FH-2 for a total of 64 CV outputs.
This is in addition to the four FHX-8GTs that can be added to an FH-2 for extra gate/clock outptus.

The module also works with the FH-1 'faderHost' USB MIDI Host Eurorack module.
Specifications

The FHX-8CV's specifications are as follows:
• Panel width: 4HP
• Module depth: 48mm
• Current draw: 65mA on the +12V rail, 33mA on the -12V rail
• Outputs: 8
◦ Digital-to-analogue conversion: 14 bit
◦ Voltage range: software (FH-2) or jumper (FH-1) selectable between ±5V, 0-10V
