Expert Sleepers FHX-8GT Gate Expander for FH-2
Expert Sleepers FHX-8GT Gate Expander for FH-2
Regular price
$ 99.00 USD
Regular price
Sale price
$ 99.00 USD
Unit price
/
per

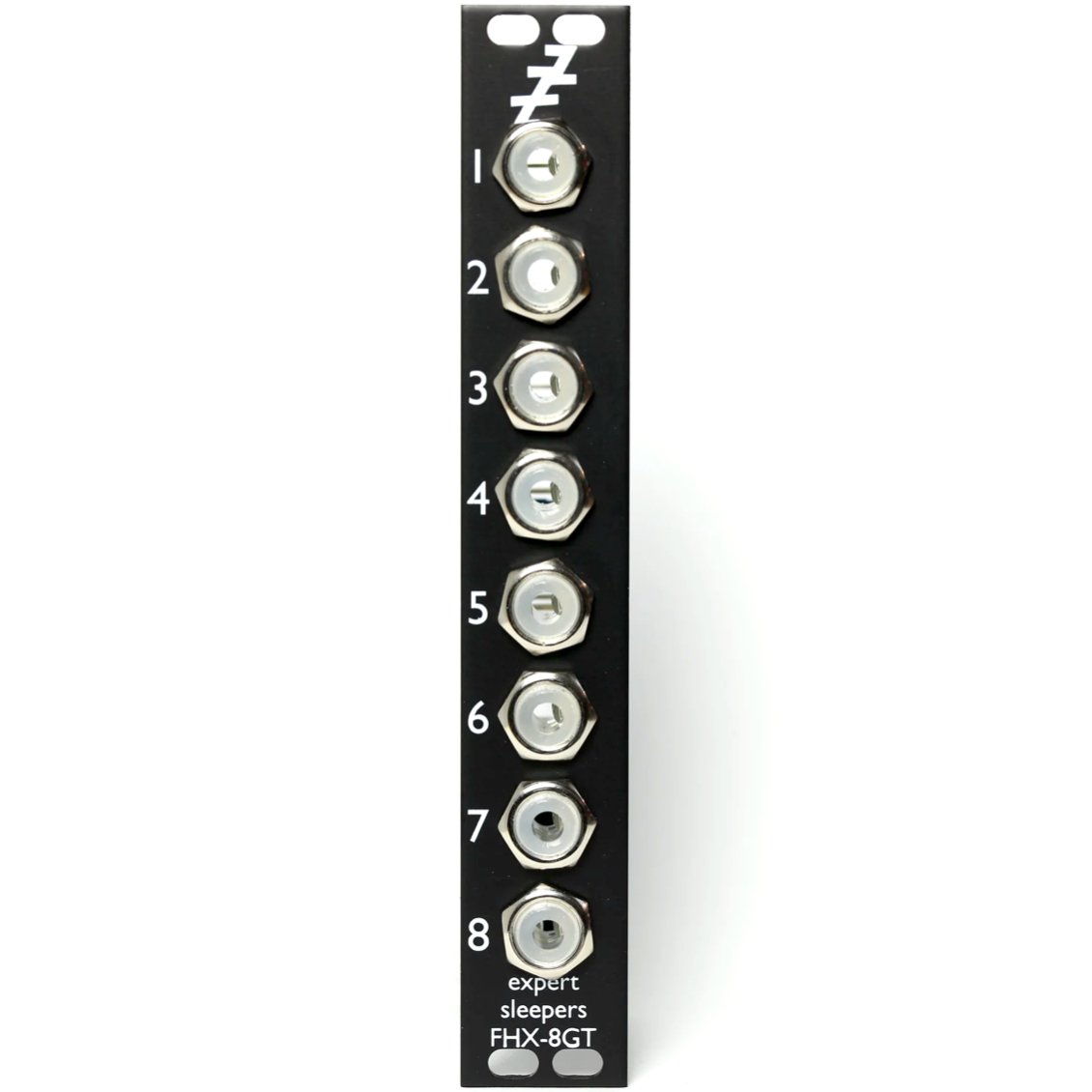

The FHX-8GT is an expansion module for the FH-2 'factotum' Eurorack module, providing 8 extra clock/gate/trigger outputs.
Up to four FHX-8GTs can be attached to one FH-2. Each FHX-8GT can also be expanded with the ESX-8GT, for a total of 64 outputs.
This is in addition to the seven FHX-8CV's that can be added to an FH-2 for extra CV outputs.
Specifications
The FHX-8GT's specifications are as follows:
- Panel width: 4HP
- Module depth: 41mm
- Current draw: 16mA on the +12V rail, 0mA on the -12V rail
- Outputs: 8 (+5V)
- Expansion header for connecting an ESX-8GT expander.
