GenXpander, N.O.S. (new old stock)

The GenXpander is out of production. This is brand new, old stock (N.O.S.)

Waveshaper / Wavemangler Expander Module for the Generator

The GenXpander is an expander module for the Generator. It adds standard waveform outuputs, internal FM waveform selection, and extensive waveshaping capabilities to the Generator module.

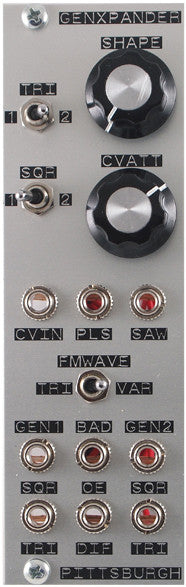

The GenXpander has 4 separate sections.

Waveshaper
The waveshaper circuit uses a triangle wave and square wave from one or both of the oscillators on the Generator module to create a saw wave and a pulse wave. Attenuated CV control of the pulsewidth and saw shape is available. A switch for the triangle wave and a swith for the square wave determine which oscillator the seed waveforms are taken from.

Selecting the same oscillator for both triangle and square will provide a clean saw wave. Selecting different oscillators for the triangle and square waves will provide a very interesting modulating, saw-triangle-square type waveform.

FM Wave Switch
Determins the waveform used by oscillator 1 (GEN1) to internally modulate oscillator 2 (GEN2). The Generator ships with the internal FM set to the variable waveform. The switch allows the frequency modulation waveform to be changed to a triangle wave.

Standard Waveform Outputs
Separate triangle and square wave outputs for both oscillator 1 (GEN1) and oscillator 2 (GEN2)

BAD Outputs
An odd/even harmonic detector, frequency mixer & waveshaper. It inverts the polarity of the triangle waves based on the frquency relationship between oscillator 1 (GEN1) and oscillator 2 (GEN2).

OE Output:
Regular polarity oscillator 1 triangle if the differance between oscillator 1 (GEN1) and oscillator 2 (GEN2) is an even number. Inverted polarity oscillator 1 triangle if the differance between oscillator 1 (GEN1) and oscillator 2 (GEN2) is an odd number.

DIF output:
Polarity of oscillator 2 triangle is changed at a frequency equal to the differance between oscillator 1 (GEN1) and oscillator 2 (GEN2). If oscillator 1 (GEN1) and oscillator 2 (GEN2) are the exact same frequency then the DIF output is the same as the oscillator 2 triangle output.

Size: 8hp
Depth: 35mm

Attaching the GenXpander to the Generator

The GenXpander attaches to the Generator using 2 ribbon cables attached to Header 1 and Header 2.

Header 1 connects the power and waveforms of the Generator to the waveshapers and outputs of the GenXpaner. The ribbon cable attaches stripe down to Header 1 on both the Genarator and GenXpander.

Header 2 controls the selection of the waveform used for the internal FM of the Generator. It replaces the jumper on the back of the Generator with a switch. Header 2 is a single row 4 pin header on both the Generator and GenXpander. The outside row of the ribbon cable attaches stripe down on the Generator and stripe UP on the GenXpander. Attaching this ribbon cable incorrectly will not cause damage to either module. Feel free to contact us with any questions.

The GenXpander receives power from the Generator through Header 1. The GenXpander does not attach directly to a power supply.
