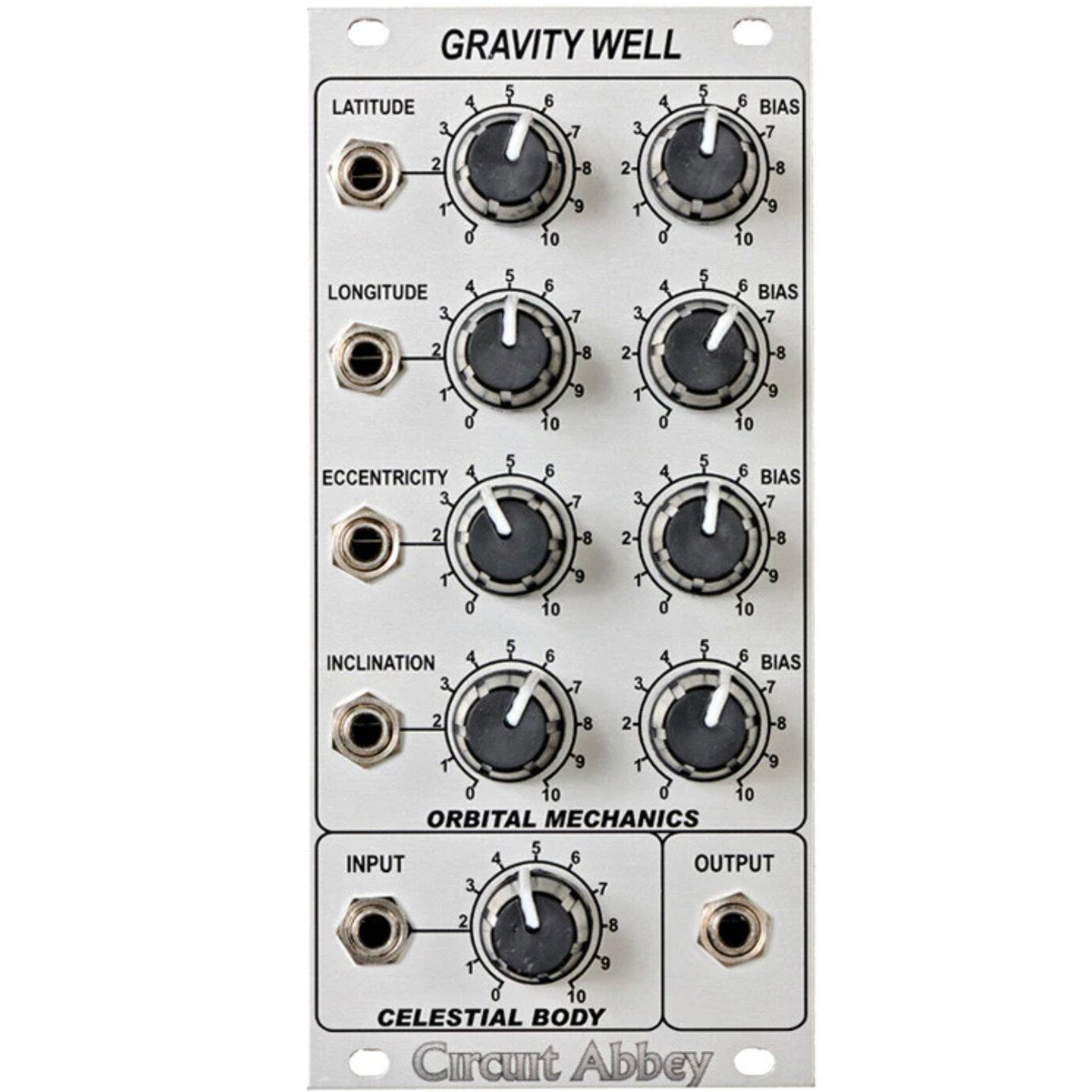

Circuit Abbey Gravity Well - Wave Modifier, brand new old stock!

The Gravity Well is a wave modifier using asymmetrical wave warping to create interesting new sounds. Think of the signal in orbit around a heavenly body whose gravity is being changed by the CV inputs. One CV varies the gravity field, another pushes it to one side, the third affects the north-south magnitude, and the forth the east-west. The module has one signal input and four CV inputs, all of which have level controls. Each CV channel has a BIAS control for setting initial bias level.

The module works by warping the positive and negative portions of the incoming signal by amounts determined by the CV inputs. The Inclination CV varies both polarities equally. The Eccentricity CV increases the positive warp and decreases the negative warp. The Longitude CV increases the positive warp only, while the Latitude CV increases only the negative warp.

Specification:-
Module depth: 30mm
Power connector: Standard Doepfer 16 pin
Current Consumption: +/- 12 volts@40mA
Panel size: 12HP
