hexadirectional crossfader

complex crossfader

a four input, six output video rate crossfader.

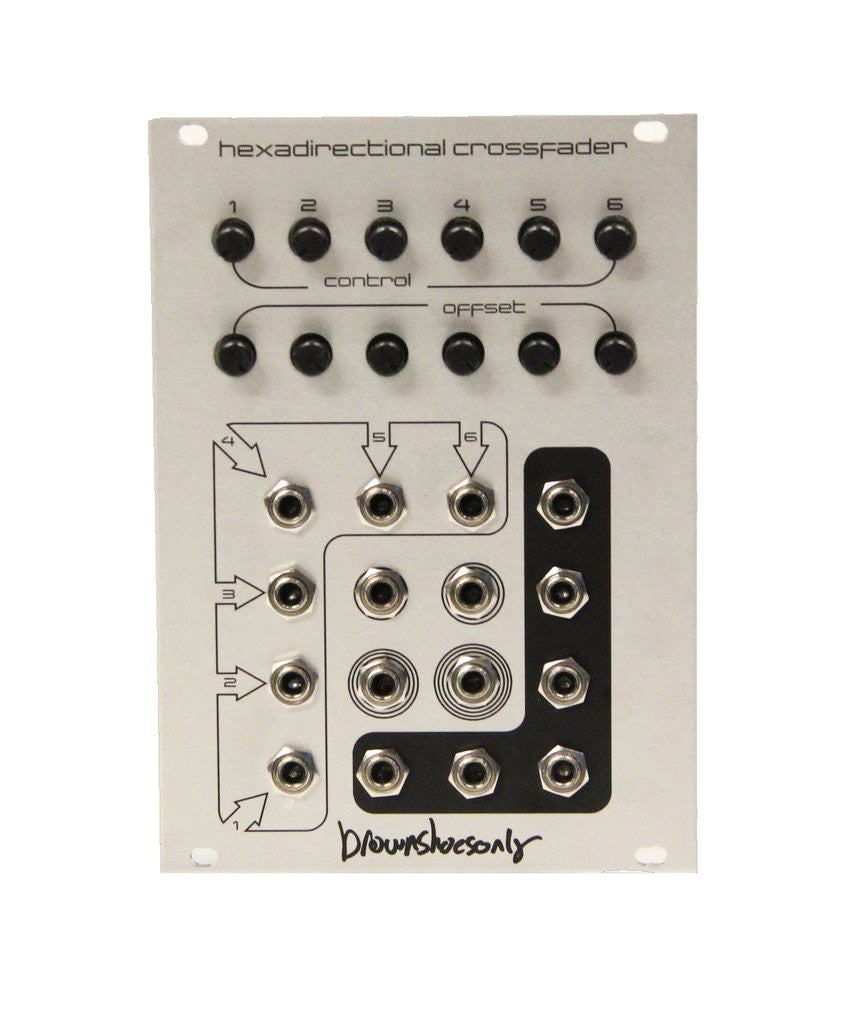

follow the arrows on the cv inputs 1 through 6 to see the direction of crossfade on the center inputs. outputs are in black.

a complex pattern mixer, feedback console, or simple crossfade utility. your patching provides limitless access to modulation.

functions as a LZX VBMv2 expansion module, channel 1 inputs A,B,C,D are sent post-gain-stage to the 4 center inputs for faster patching and less cable clutter.

• 18 HP
