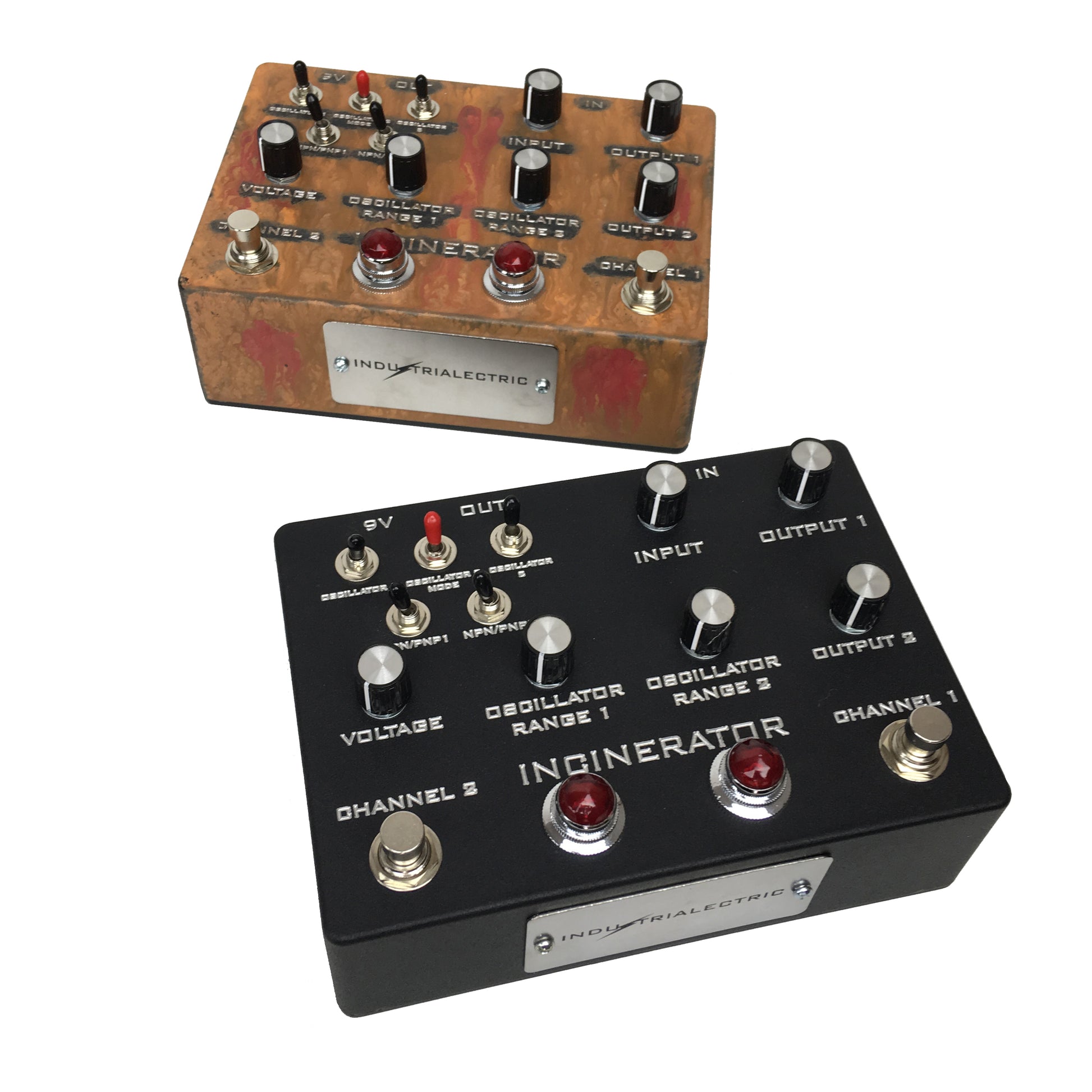

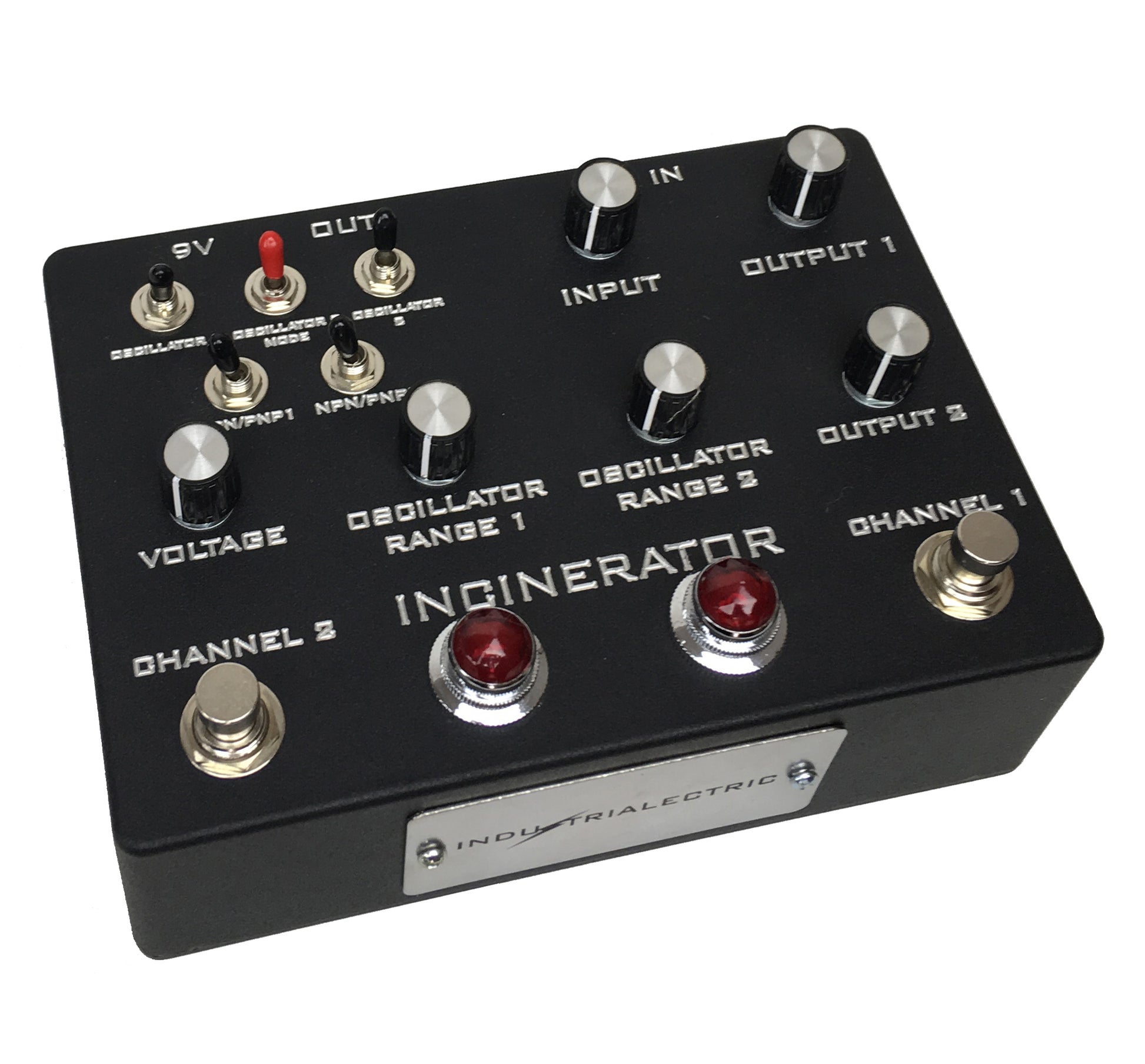

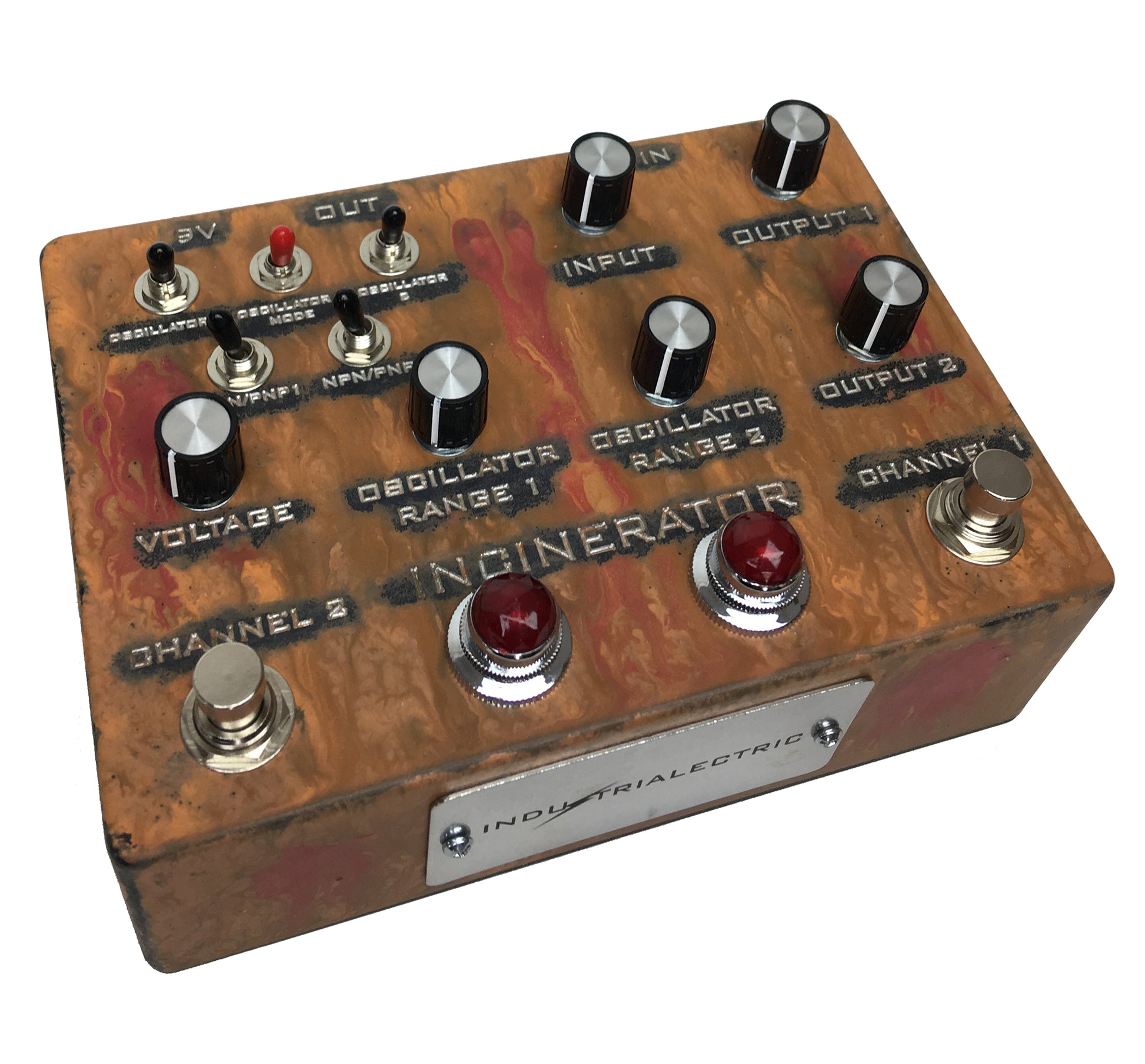

Industrialectric Incinerator

The INDUSTRIALECTRIC Incinerator is a pure rare silicon transistor based dual channel fuzz monster featuring dual chaos oscillators. It can be used as a synth and so much more.

The Incinerator contains 26 transistors; 5 of those transistors are a special rare silicon transistor that is the beating heart of the beast! This is pure silicon fuzz madness!

Controls:
Input: This applies to the first channel fuzz and is the overall input (drive) of the transistors in the circuit.
Output 1: The overall output (volume) of the first fuzz channel.
Output 2: The overall output (volume) for the second fuzz channel.
Voltage: This starves the voltage (power) to only the first fuzz channel, it works well when combining both channels and also with the oscillations engaged.
Oscillation range 1&2: Each fuzz channel has separate oscillators and their corresponding range controls.
Oscillation switches 1&2: These are the switches to turn on and off the oscillation.
Mode switch: This switch applies only to fuzz channel 2, it flips between two modes of oscillation expanding even more possibilities of insanity.
NPN/PNP - NPN Switch: This is a transistor switch. It lets you choose between two different variations of transistors.
