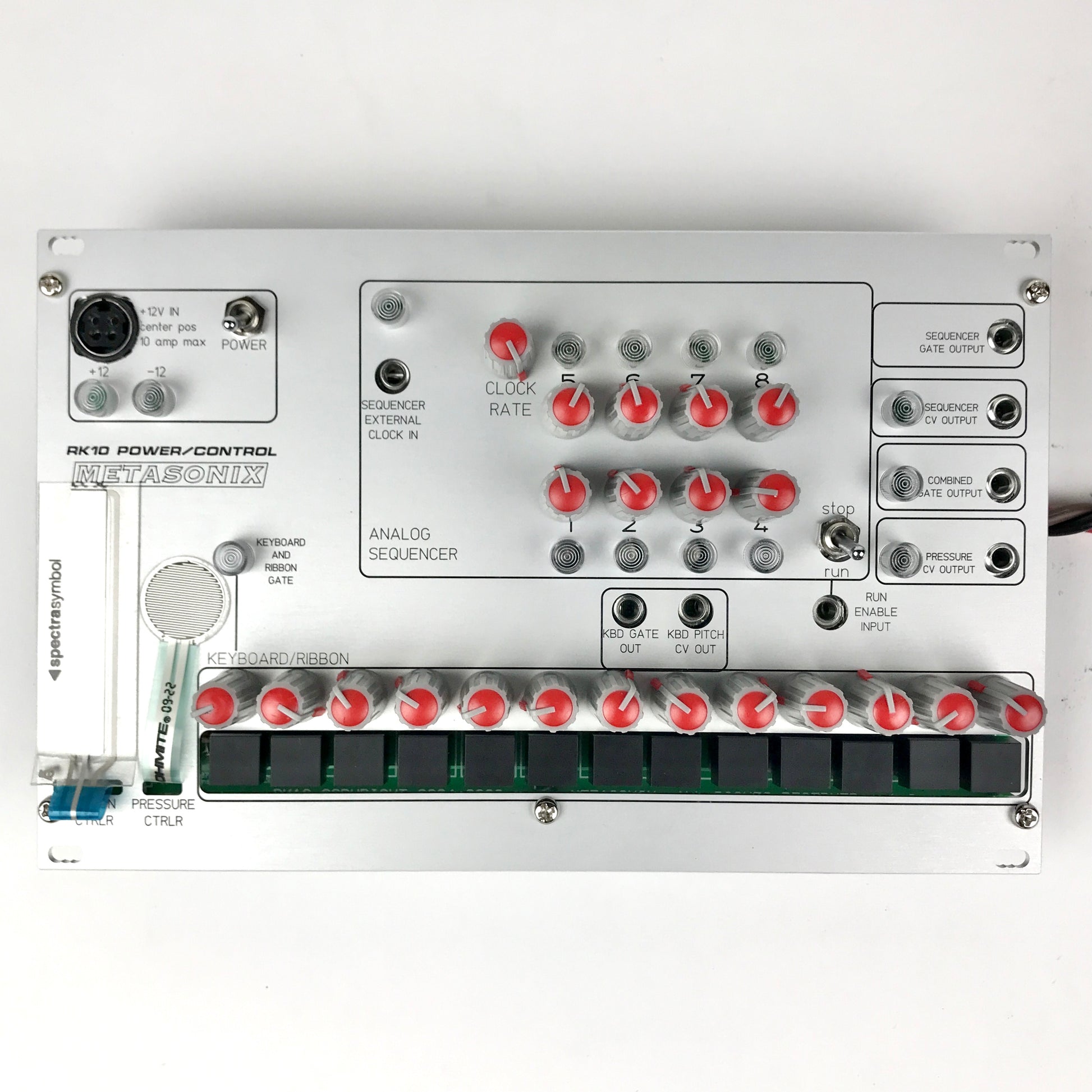

Metasonix RK10

A serious power supply plus a complex controller for Metasonix modules.

The RK10 is a power supply capable of running up to fourteen random Metasonix RK tube modules, with CV/gate controllers included. The controller section is very similar to the controller built into the previous T1 Synthesizer. We are making it in this form due to repeated demands for the control section of the T1 as a Eurorack module. Plus unending requests for a heavy-duty power supply that will run our modules. The RK10 produces +12v at 8 amps and -12v at 2 amps absolute maximum; the +12 supply has more capacity because the heaters of the tubes in RK modules are always powered from the +12v supply, and draw a LOT of current when started cold. Once the tubes are at operating temperature, the power supply will be running at far below its maximum ratings. It will also power conventional solid-state Euro modules if desired. The RK10 is one of the most powerful Eurorack supplies ever offered and is intended specifically to run our RK modules.
