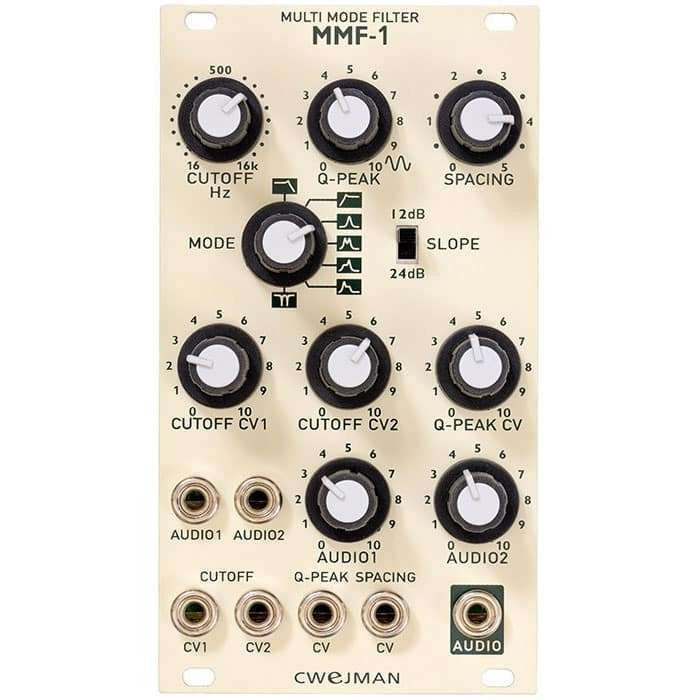

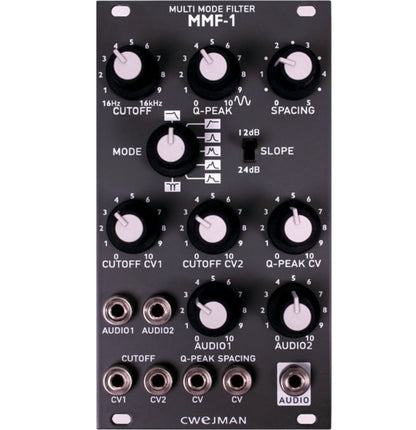

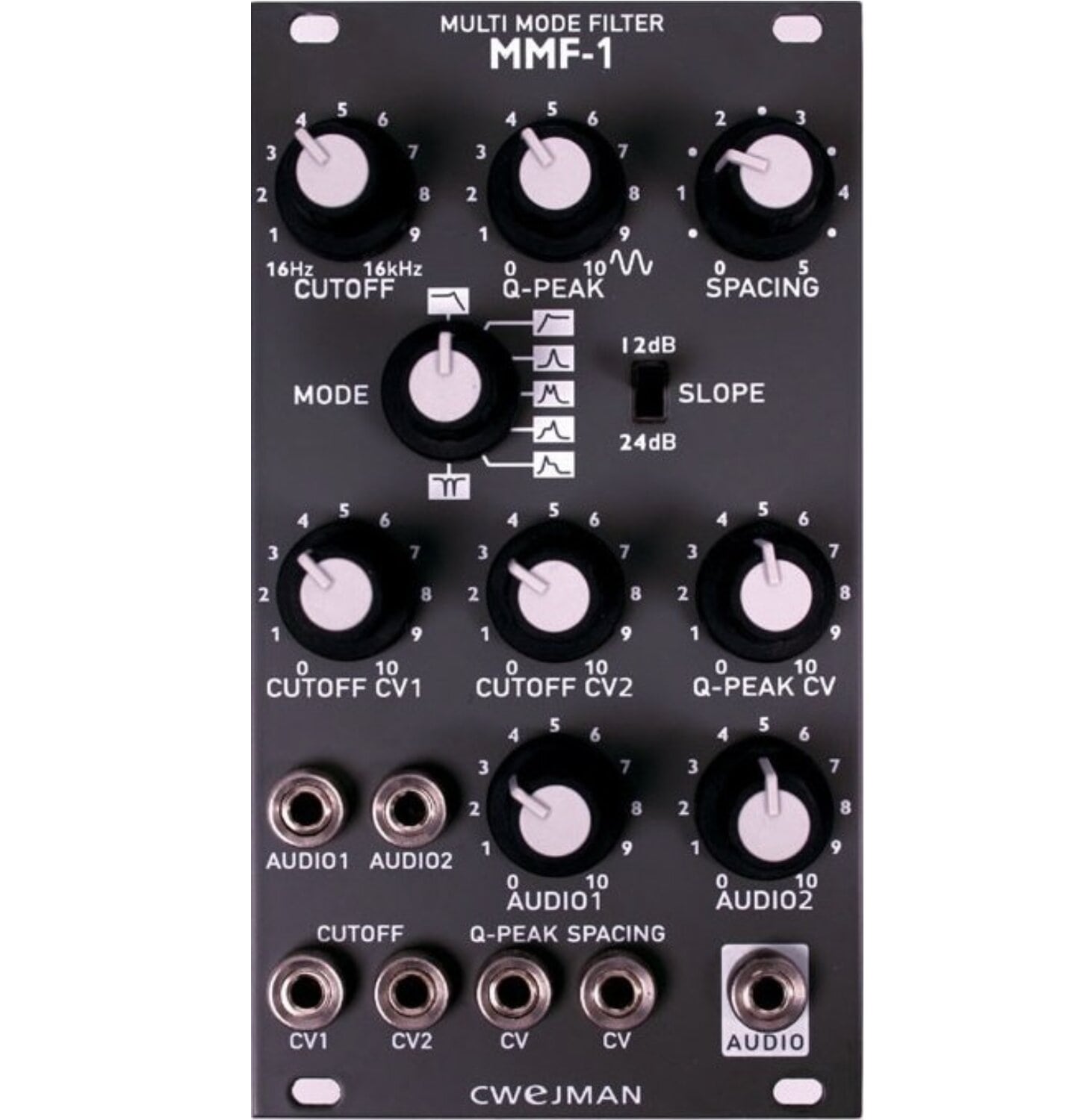

Cwejman MMF-1 Multimode Filter

The MMF-1 is an extremely flexible filter. The variable SPACING (bandwidth) and 2 variable resonance peaks make it possible to create various vocal-like sounds. The circuit design is 'state of the art' analog and the results are truly impressive.

• Wide frequency range from 1 Hz to 25 kHz
• Vital parameters such as CUTOFF, Q-PEAK and LEVEL output
• Selectable 2, 4 and 6 poles
• Low, high and band pass mode
• Clean sound even in self oscillation mode
• Ideal as "effect filter" with external sound material
• Clean, yet "warm" and "smooth" sound
• Low noise

The Multi Mode Filter offers 7 modes of operation:

• Low pass
• High pass
• Band pass
• Dual band pass 1
• Dual band pass 2
• Dual band pass 3
• Notch
