JoMoX Moonwind Analog Filter Tracker, Mint
JoMoX Moonwind Analog Filter Tracker, Mint

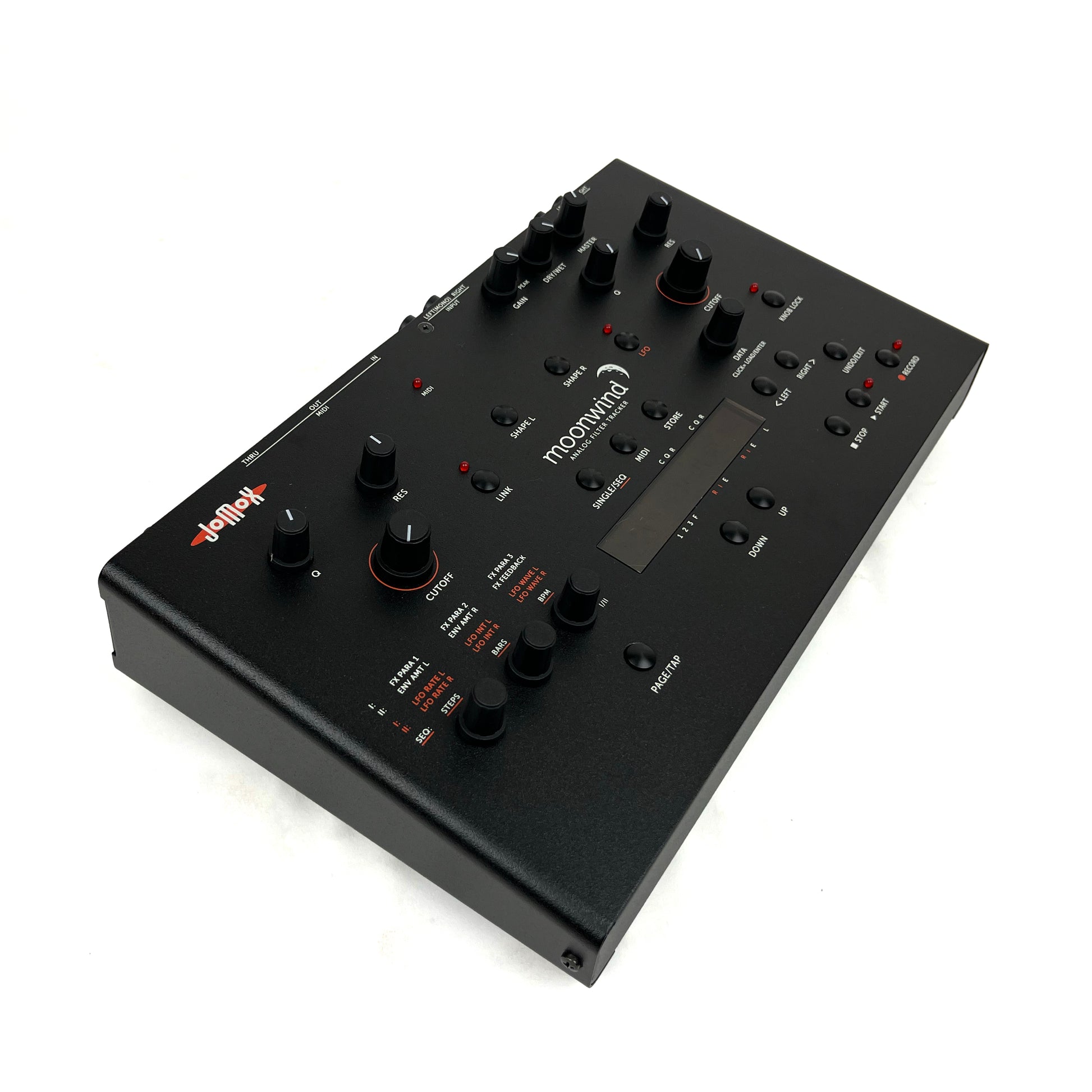

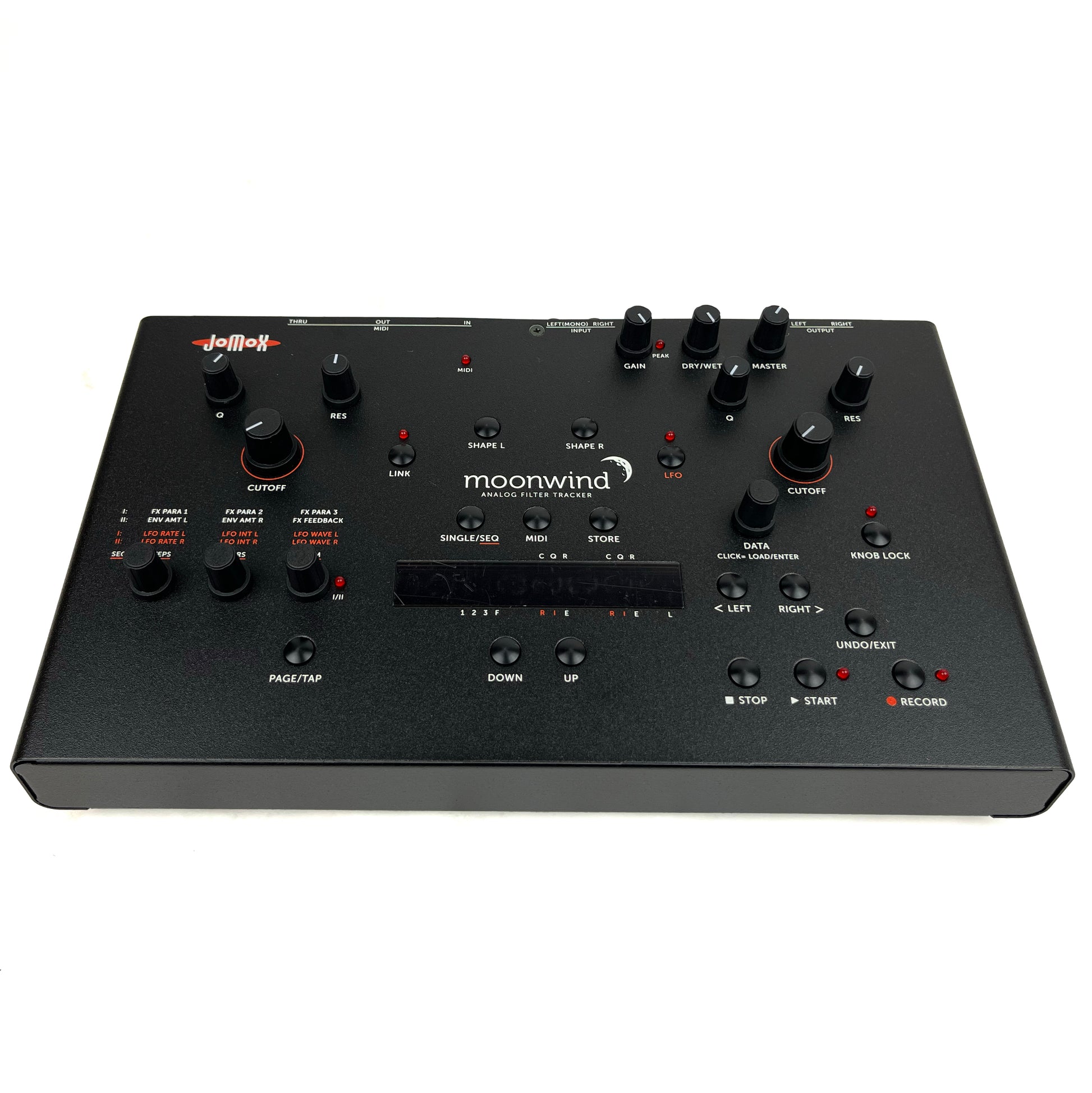

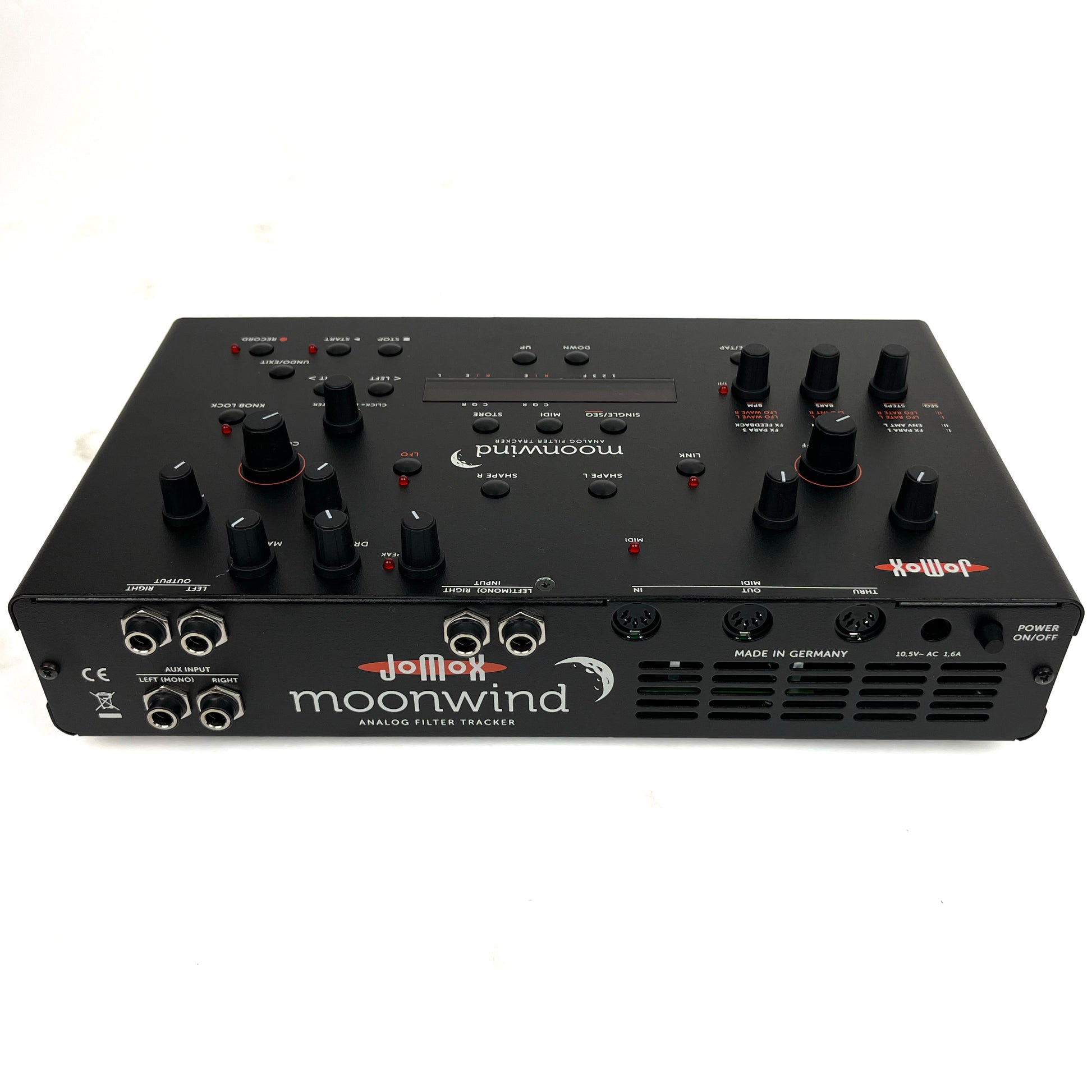

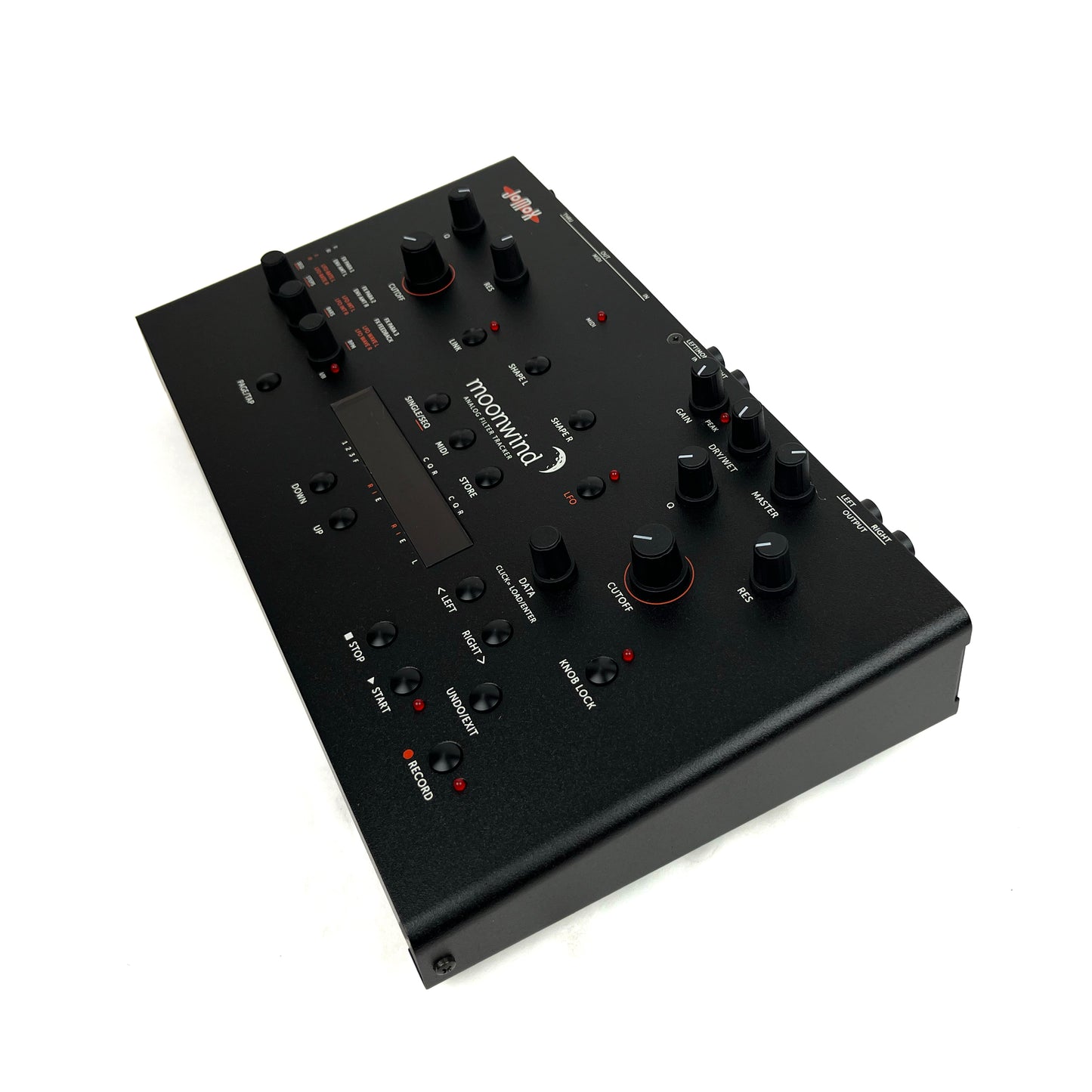

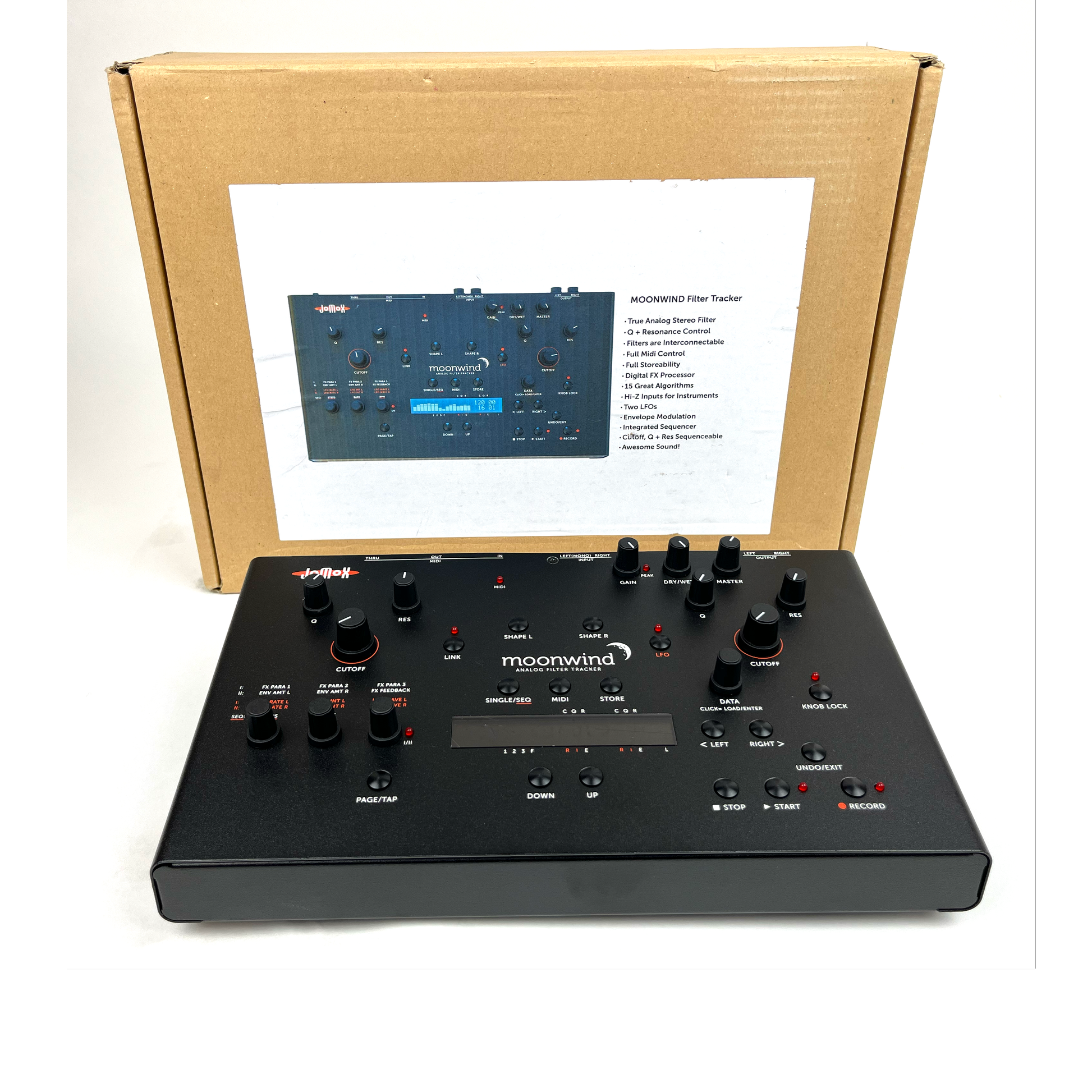

Moonwind Analog Filter Tracker in Mint condition. Power supply is included.
Moonwind Analog Filter Tracker is a true analog stereo filter with built-in step sequencer, a fantastic sounding digital FX chip, 2 LFOs and envelope modulation. Everything is storable and controllable via MIDI. And...it sounds awesome!
You can play the Moonwind like a synth by MIDI notes and play melodies on the filters if they whistle in self-resonant mode.
The sequencer is able to control cutoff, Q and resonance per step and filter and thus turns the stereo filter with analog fed back effects into a creative instrument of its own.
This makes the Moonwind an easy-to-use and awesome analog sounding engine that is playable like a synth and can be seamlessly integrated into a DAW recording system.
Demos:
moonwind-elektromoon
moonwind-jazzastrato
moonwind-noisemoon2
moonwind-dubmoon
moonwind-acidmoon
- Two real analog low noise multimode filters
- OTA technology *
- Per filter Q (narrowness) and Resonance are separately adjustable **
- Per filter the shapes lowpass, highpass, bandpass and notch are assignable
- The filters are connectable among each other ***
- Per filter there is one LFO which controls the cutoff ****
- Per filter there is envelope amount, the envelope is created from the audio with an analog envelope follower
- Inputs are Hi-Z and can amplify guitar or bass signals directly
- Digital effects chip with 15 algorithms
- Analog FX Feedback in order to create tape delays and wave guides
- Three parameters per FX algorithm
- The effects programs include chorus, flanger, tremolo, reverb, delay and some more exiting programs
- Eight effects programs can be reloaded by OS update later on
- Built-in noise generator
- Sequencer can record Cutoff, Q and Res seperately per step and filter
- Maximum 64 steps per pattern
- Maximum 16 steps per bar (then max. 4 bars), bars can be dynamically set according to the number of steps per bar
- Clock divider can resolve max. 32th per bar
- Record/undo function to record filter trails by the rotary knobs
- Sequencer and LFOs are midi clock synchronizeable
- Midi notes control the cutoff of the filters, CCs the rest of parameters

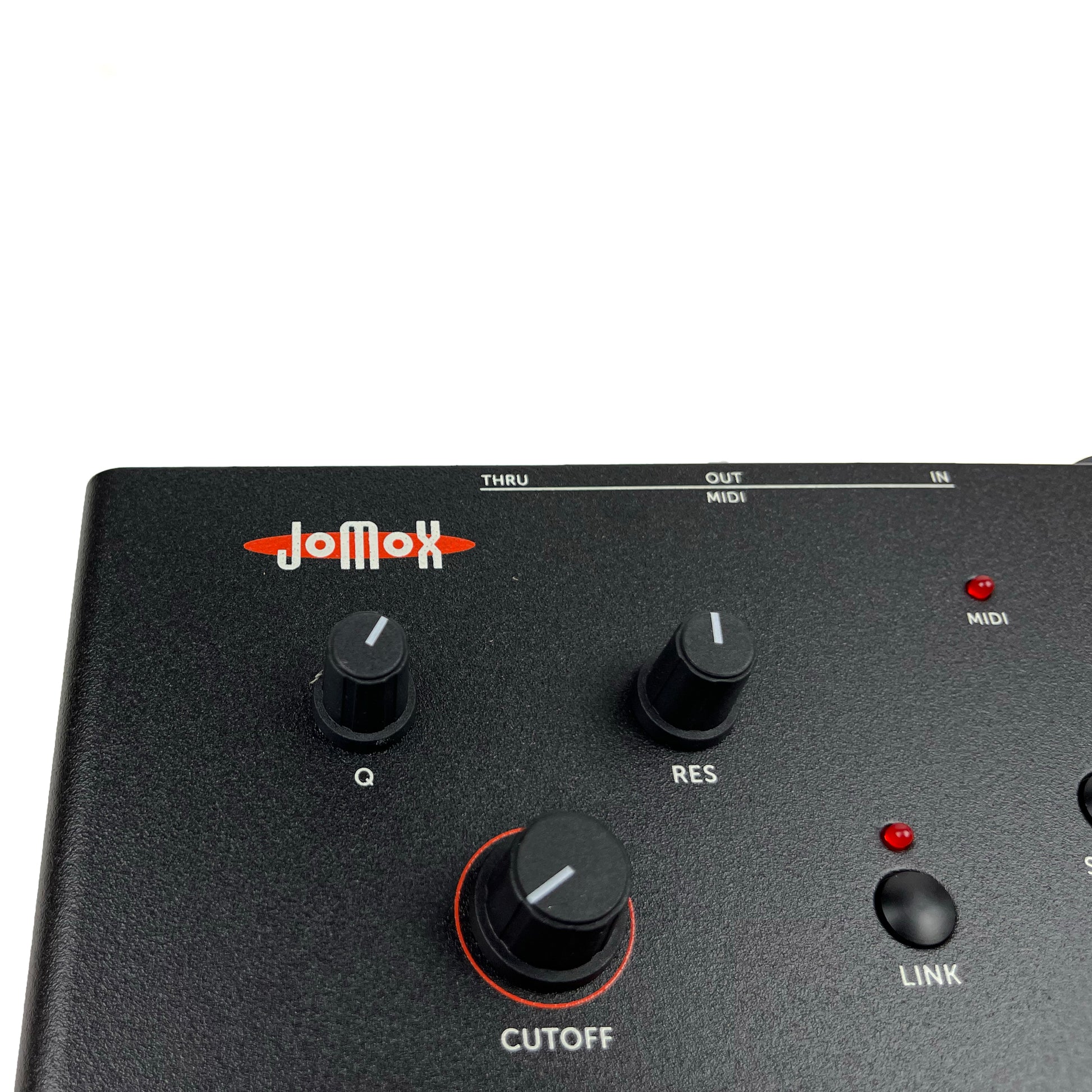

- Cutoff, Q and Resonance are made as classical potentiometers
- Stable metal axis potentiometers and encoders with axle bearings

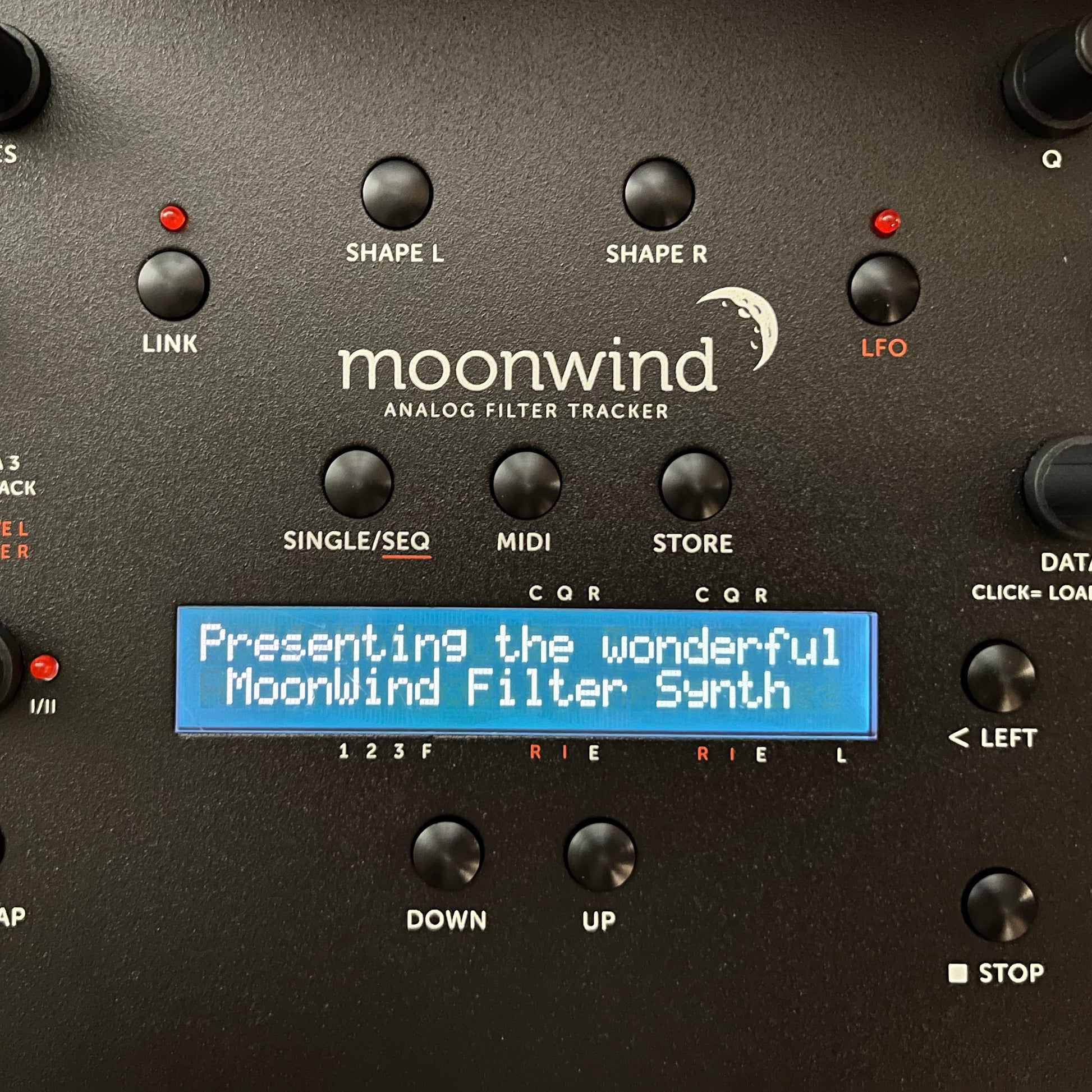

- 2x24 character LCD display
- OS is updateable by Midi
* Operational Transconductance Amplifier, i.e. it is no transistor ladder (Moog filter) as in the T-Resonator. Therefore excellent vibrational performance across the entire audio range from 10Hz-30kHz is provided.
** If Resonance=0, then Q=max creates an extremely narrow-banded filter without getting into self-resonance (sine wave oscillation). If Resonance>0, then also Q>0 has to be set to make the filter resonate.
*** Stereo, Parallel (both filters mixed to mono), Serial (both filters in a line), Feedback (a part of the output signal is cross-wise fed back into the other filter and vice-versa) and Feedback Parallel ( the same as feedback, only that both sides are mixed together)
**** LFO waveforms are: sawtooth up, sawtooth down, triangle, sine, rectangle 50/50%, rectangle 12.5/87.5%, rectangle 25/75%, rectangle 75/25%, rectangle 87.5/12.5%.
