Division 6 Multiplicity VI Phat 3HP
Division 6 Multiplicity VI Phat 3HP
Regular price
$ 90.00 USD
Regular price
Sale price
$ 90.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
3HP Version
Multiples are handy, but the more ways you split your signal the weaker it gets.
The Multiplicity VI is a buffered multiple; every single output jack regenerates your signal. Whether you are splitting audio or control voltages, there is no degradation.
Multiplicity's channels are cascaded, giving you flexibility in how many ways you split your signal. Plug a signal into input 1 and it will be available from all 6 outputs. Add a different signal into input 2 and it breaks the chain; signal 1 comes out 3 outputs and signal 2 is available at the remaining 3.
Multiplicity VI has Cascade In / Out jacks on the back so that several modules can be cascaded together without sacrificing front-panel connections. Connect several modules together and it's like having one giant spread-out buffered multiple module. You can also use it to provide a "default" signal that is available when you aren't using the Multiplicity for anything else.

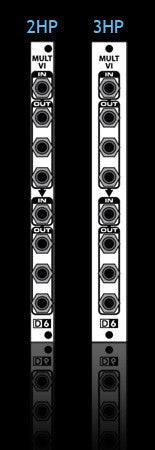

All that flexibility is crammed into a skinny module which is available in either the original 2HP version or the new "Phat" 3HP version. Replace all those non-buffered multiples or fill up extra spaces in your rack with something handy.
Specifications:
Power supply: +/- 12 VDC (reverse-polarity protected!)
Power draw: 16ma / 16ma
Width: 2HP or 3HP
Depth: 1.77in / 45mm
Includes:
Multiplicity VI Module
Doepfer-style Power Cable
(2) M3 x 6mm Rack Screws w/ Nylon Washers
Multiples are handy, but the more ways you split your signal the weaker it gets.
The Multiplicity VI is a buffered multiple; every single output jack regenerates your signal. Whether you are splitting audio or control voltages, there is no degradation.
Multiplicity's channels are cascaded, giving you flexibility in how many ways you split your signal. Plug a signal into input 1 and it will be available from all 6 outputs. Add a different signal into input 2 and it breaks the chain; signal 1 comes out 3 outputs and signal 2 is available at the remaining 3.
Multiplicity VI has Cascade In / Out jacks on the back so that several modules can be cascaded together without sacrificing front-panel connections. Connect several modules together and it's like having one giant spread-out buffered multiple module. You can also use it to provide a "default" signal that is available when you aren't using the Multiplicity for anything else.
All that flexibility is crammed into a skinny module which is available in either the original 2HP version or the new "Phat" 3HP version. Replace all those non-buffered multiples or fill up extra spaces in your rack with something handy.
Specifications:
Power supply: +/- 12 VDC (reverse-polarity protected!)
Power draw: 16ma / 16ma
Width: 2HP or 3HP
Depth: 1.77in / 45mm
Includes:
Multiplicity VI Module
Doepfer-style Power Cable
(2) M3 x 6mm Rack Screws w/ Nylon Washers
