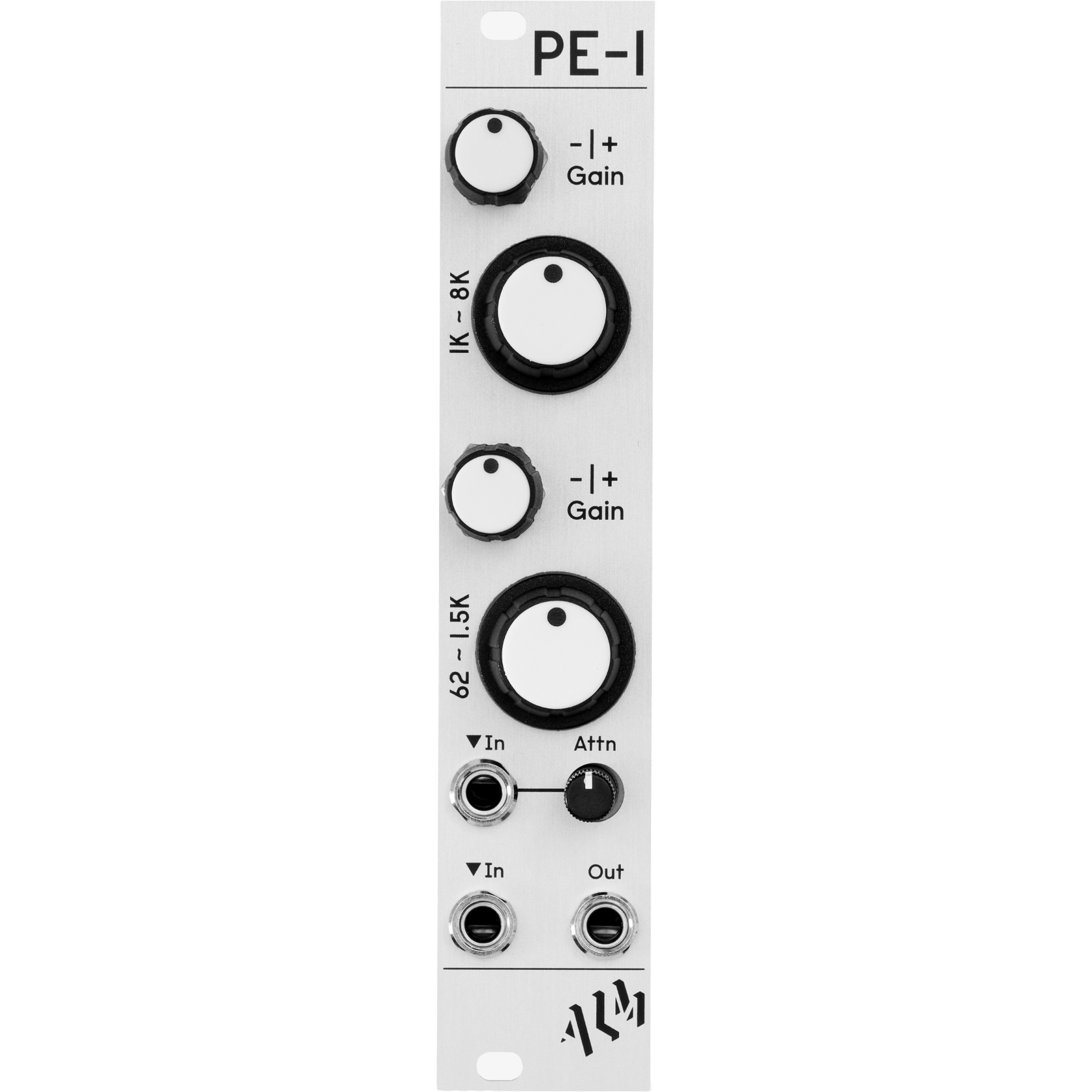

ALM Busy Circuits PE-1 - Dual Band Parametric EQ

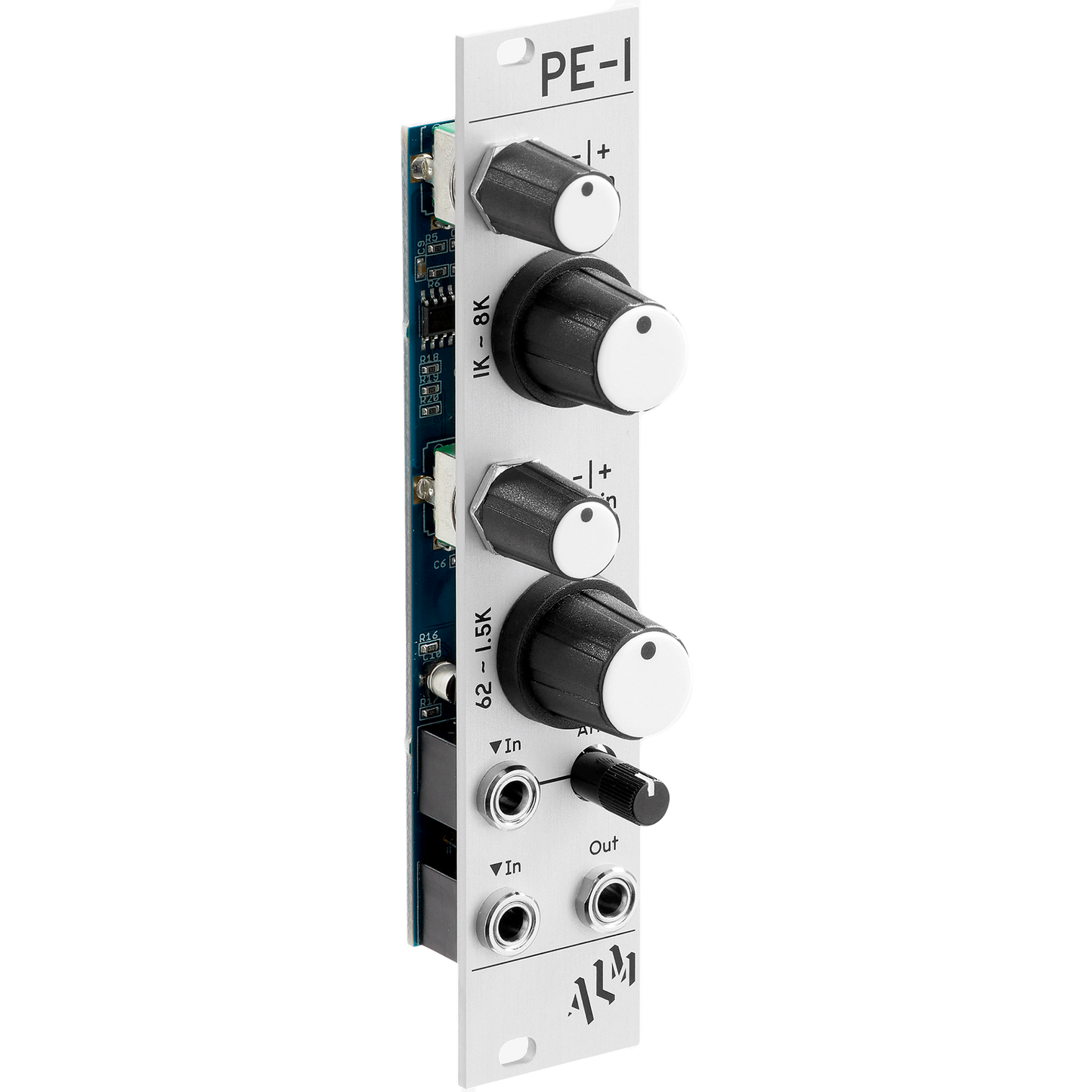

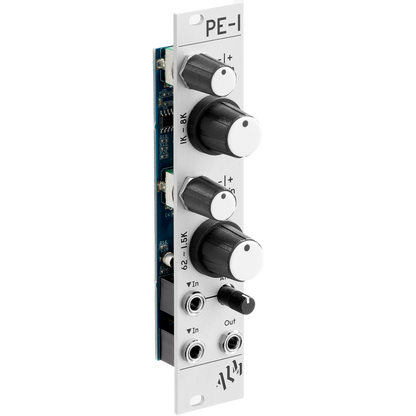

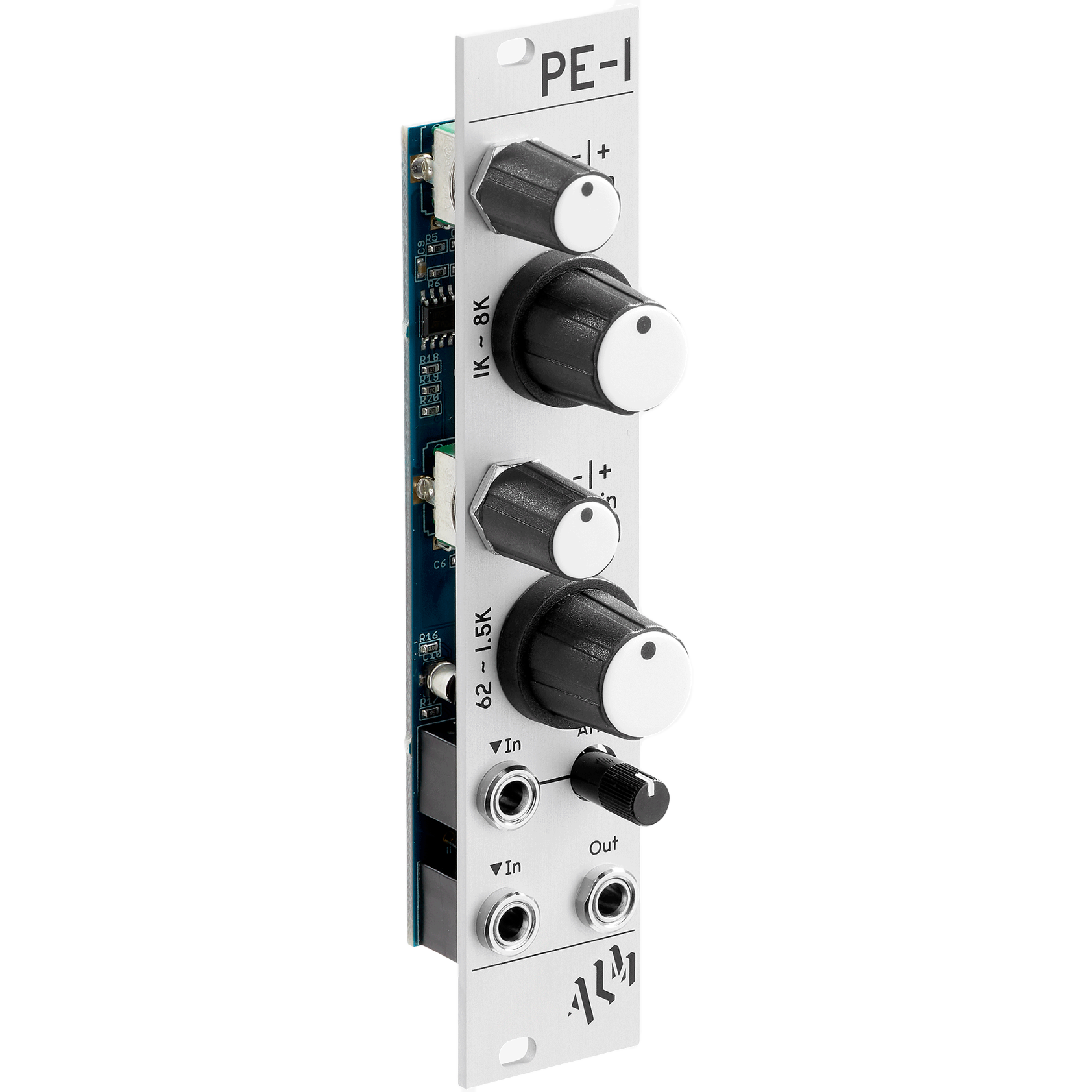

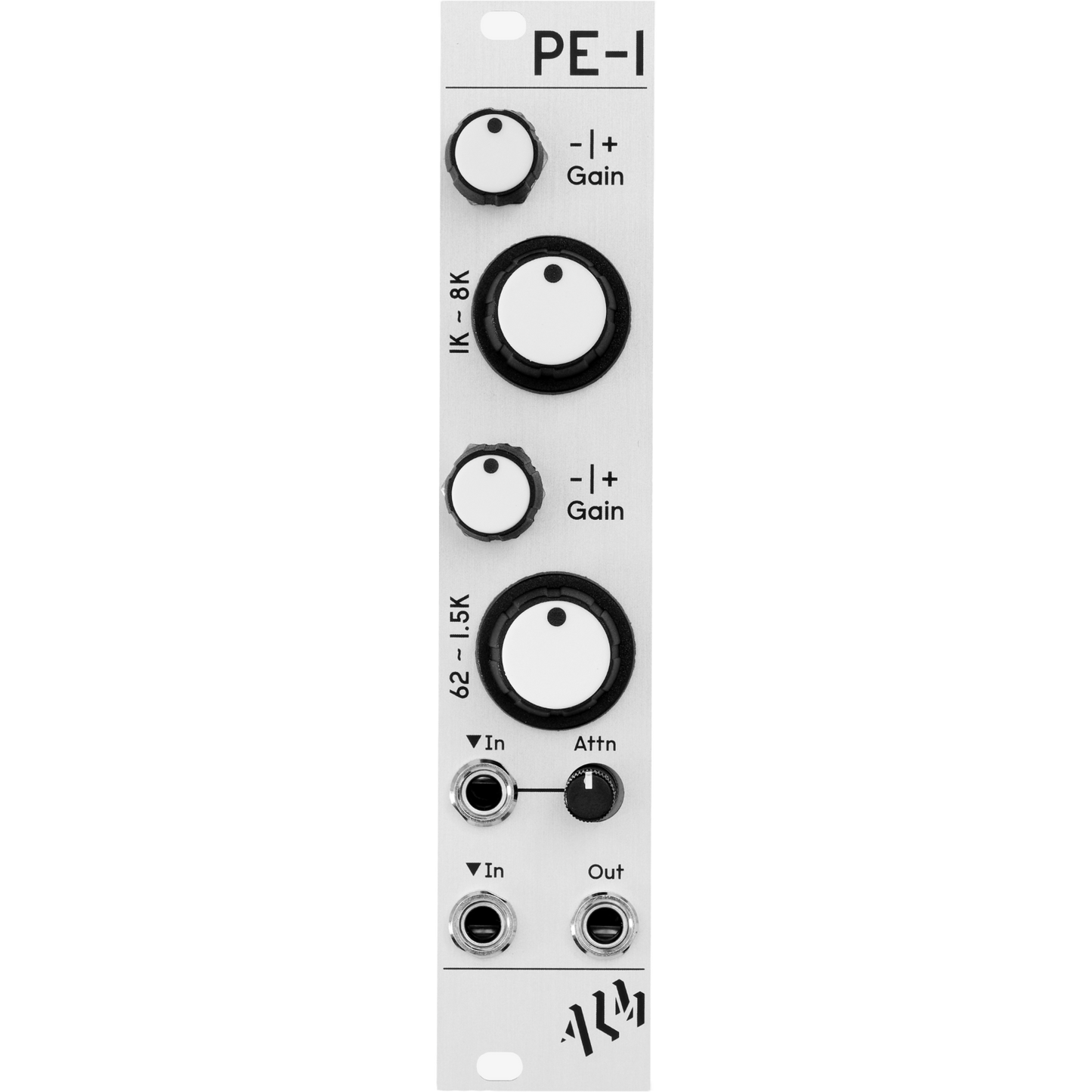

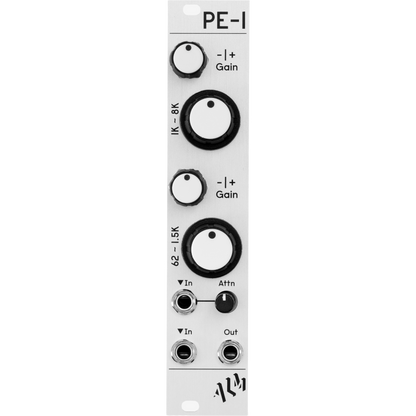

‘PE-1’ is a dual band parametric EQ and simple two channel mixer. Two control sections provide a sweepable cut or boost to a selectable upper and lower frequency band. The module has two ac-coupled audio inputs, one of which has an attenuation control for basic mixing, and a single audio output.

The ‘PE-1’ is inspired by the EQ circuits used in early ‘Portastudio’ type 4 track tape mixers. Warm up a digital source, fine control a live performance, extend a mixer, tweak a feedback loop – there are many uses for this great sounding EQ.

Features:

• Provides +/-12db of boost and cut across 2 selected frequency bands

• Dual input with single attenuation control

• Reverse polarity protection.

• Skiff friendly.

• Designed and Made in the UK.


Technical Specs:

• Supply: +/-12V (Reverse voltage protection)

• Current Draw: ~10ma

• Size: 5 HP

• Depth: 32mm (including power header)
