Pro DCB mk3

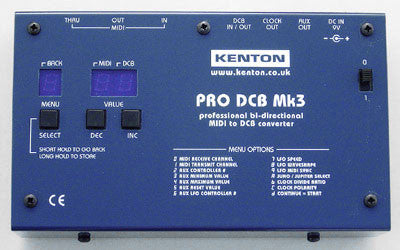

The Kenton Pro DCB mk3 is a bi-directional MIDI to DCB Interface.

The Kenton Pro-DCB brings instant MIDI to those much-loved instruments, the Juno-60 and Jupiter-8*. Just plug in and go.

As well as offering control of notes (and program change on Jupiter-8), the interface also has output sockets for filter control and arpeggio clocking. In addition, it boasts a built-in programmable LFO and works both ways (ie. it's bi-directional), so your Juno can be used as a master keyboard if required. We think that you'll find this the most comprehensive MIDI-DCB converter available today, and it's fast too.

Power:
9-15V DC. We will include the correct power supply appropriate for the delivery address.
Dimensions: 6 5/8" x 3 13/16" x 1 5/8"
Weight: 600g
MIDI:
In, Out, Thru
Analog Outputs:
Clock (0-5v)
Aux (0-12.5v)
Digital Inputs:
DCB (In and Out)

Please refer to the manual for more details.

You may need 3.5mm mono jack to 1/4" mono jack leads for Clock and VCF. Remember to select the correct unit for your make and model of synth.

Juno-60 always has a 14 pin DCB connector.

Juno-6 fitted with Kenton DCB socket upgrade also has 14 pin DCB connector.

Jupiter-8's can have an existing DCB (14 pin) or OP-8 (20 pin) connector. Some Jupiter-8's have neither. You need to check.
