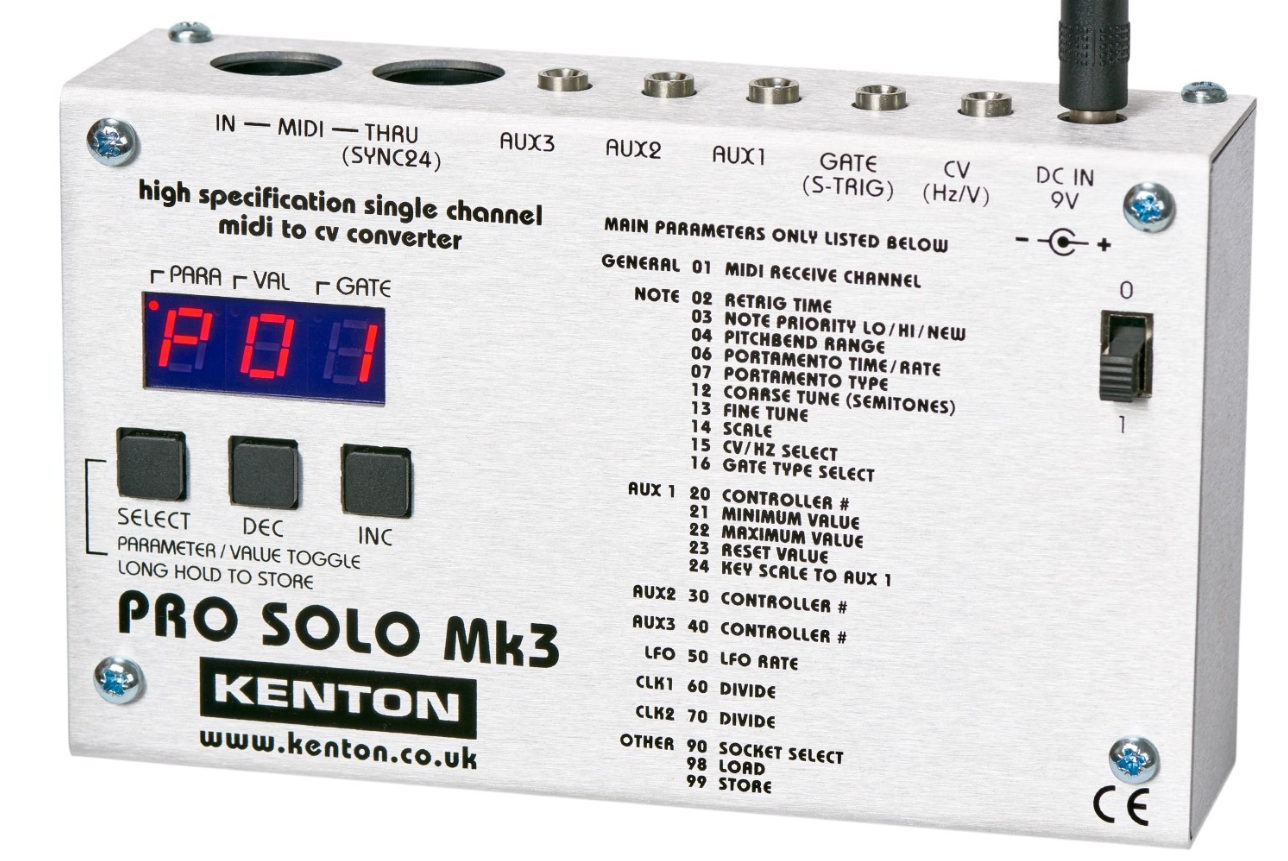

Pro SOLO mk3 MIDI to CV converter

High specification single synth MIDI to CV converter

• Designed to control all types of mono-synth
• Super-fast response time
• Famous Kenton build quality
• Rugged steel case
• High specification 16 bit D/A converters for rock-steady pitches
• Runs from standard 9 volt power supply, 2.1mm center positive (+)
• MIDI IN socket
• MIDI THRU socket can be switched to become DIN SYNC or AUX 2 & 3
• Any MIDI channel can be selected
• Switchable for V/oct & Hz/V & 1.2V/oct scaling systems
• Fine tune & scale are software controllable
• Transpose (coarse tune) - up & down 12 semitones
• Adjustable pitchbend range
• Programmable Gate V-trig (up to 15v) or S-trig (with or without pull-up)
• Multiple and single trigger modes
• Note priority selection - newest / lowest / highest
• Old notes are remembered to facilitate trill effects and increase playability
• Portamento - fixed rate or fixed time modes
• Auto Portamento mode selectable (where legato playing turns on Portamento)
• Portamento Controller is selectable
• Programmable AUX 1 variable analogue output controllable by any MIDI controller
• AUX 2 & 3 (if selected) are switch outputs giving +5V or zero, depending on controller value
• Programmable LFO - 9 wave shapes inc. random
• LFO can modulate pitch &/or AUX output
• Separate Controllers for LFO to CV and LFO to AUX
• LFO can be synchronised to MIDI clock
• LFO sync point can be selected
• Key-on can reset LFO
• Aux1 output can output clock
• Clock output can select from 1 to 12, 24, or 48 clocks per quarter note
• All parameters are controllable in real-time by SysEx
• Set-up are stored in non-volatile memory for easy recall
• MIDI monitor mode - for easy MIDI troubleshooting
• Power supply included - UK / EU / USA types available

What's new or different about the MkII?

• Now runs from standard 9 volt power supply - centre positive
• MIDI THRU socket can be switched to become DIN SYNC or AUX 2 & 3
• Portamento - new fixed time mode as well as existing fixed rate
• Auto Portamento mode selectable (where legato playing turns on Portamento)
• LFO sync point can be selected
• LFO to CV controller now has Min, Max and Reset values
• LFO to Aux controller now has Min, Max and Reset values
• Key-on can reset LFO
• All parameters are controllable in real-time by SysEx
• Aux1 output can output clock at 1 to 12, 24, or 48 clocks per quarter note
• Din sync and clock can be used at the same time as CV and Gate outputs
• Can control all 5 connections of a TB-303 5 Socket upgrade at the same time
• Display now uses all three digits to display numbers
• Box now an attractive cobalt blue colour
