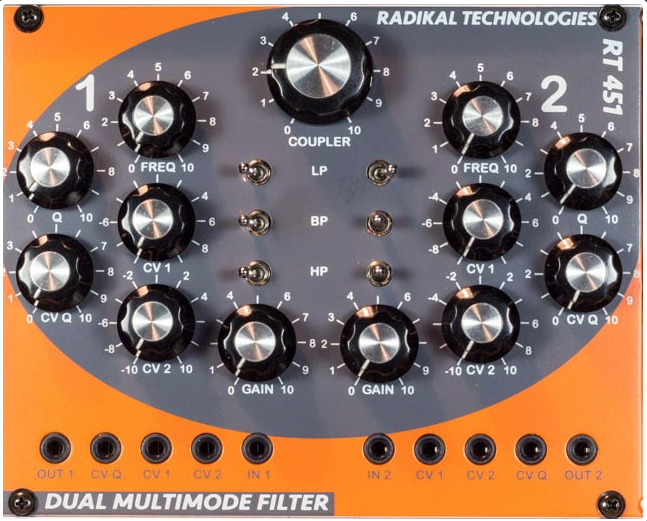

RT-451 Dual Multimode filter module

Warm and vintage sounding low resonance settings as well as aggressive and modern high resonance sounds - the RT-451 does both. It is very flexible and has a lot of character.

This filter creates the kind of earthshaking low end sine oscillations that are perfect for all kinds of electronic kick sounds or ultra low sub bass drones popular in Drum & Bass music. Each filter has switchable lowpass, highpass and bandpass characteristics. The toggle switches mix the different filter functions together and feed them to the output.
The parameters of both filters operate totally independent from each other but the Couple knob in the middle controls both filter frequencies simultaneously. That allows for controlling both filters in series or parallel configurations with one dedicated knob.

The RT-451 is the perfect addition to your Eurorack synthesizer system. Built by real synth enthusiasts with a passion for fat and flexible filter sounds the RT-451 just adds that extra special "Oomph" to your sound.

Specifications:

• 2x 12dB multimode filters with lowpass, highpass, bandpass and notch

• Resonance settings up to self oscillation

• 1 volt/octave tracking over multiple octaves at self oscillation

• 2 cv inputs for cutoff modulation with cv inversion for each filters

• 1 cv input for resonance modulation with cv inversion for each filter

• Cv inputs of filter one are automapped to filter two if no jack is inserted at filter two

• Two signal inputs with independent gain control

• Independent filter outputs

• Power consumption: 12 Volt, 80 mA; -12 Volt, 80 mA; 5 Volt, 0 mA

• Size: 3HE, 32 TE, 50mm depth
