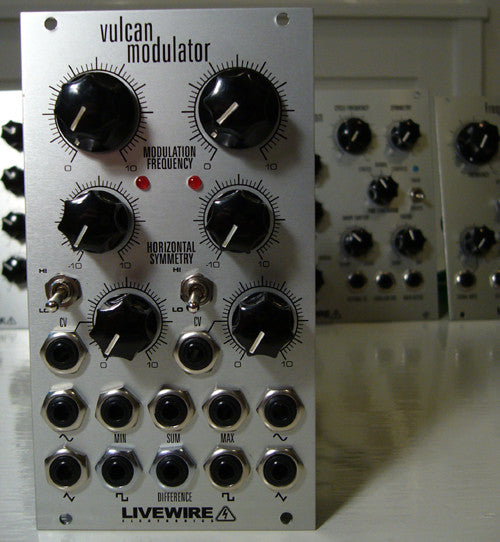

Livewire Vulcan Modulator

Livewire Vulcan Modulator

Regular price $ 245.00 USD
Regular price Sale price $ 245.00 USD
Sale Sold out
Shipping calculated at checkout.
Vulcan intuition modeled with analogue circuitry. Live long and modulate.

The second module in the Alien Modulator series, the Vulcan Modulator contains 2 linear cross-modulating VCLFOs with 10 outputs providing 30 possible waveform variations.

The design of this module is parallel to that of the Dalek Modulator, except that the VCOs are low frequency (2 ranges- low audio & very low LFO) and the output section offers 10 different combinations of the two oscillators waveforms: sine (x2), triangle/saw (x2), square/pulse (x2), sum, difference, minimum & maximum.

The waveforms from each oscillator that feed into the four combined outputs can be selected via jumpers on the back of the module. This allows for a total of 30 possible waveform variants.

This module was designed with the specific purpose of providing the maximum modulation possibilities in a single package.

Specifications:
Inputs: Each VCLFO has CV modulation of frequency with attenuation.
Outputs: Each VCLFO has outputs for sine, triangle and square wave. Also on offer are outputs for min, max, sum and difference of the two VCLFOs.

Controls: Each VCLFO has controls for frequency, horizontal symmetry, hi/lo (low and very low) speed selection, and CV modulation attenuation.

Space Usage: 14 HP/TE
Current Consumption: TBA
