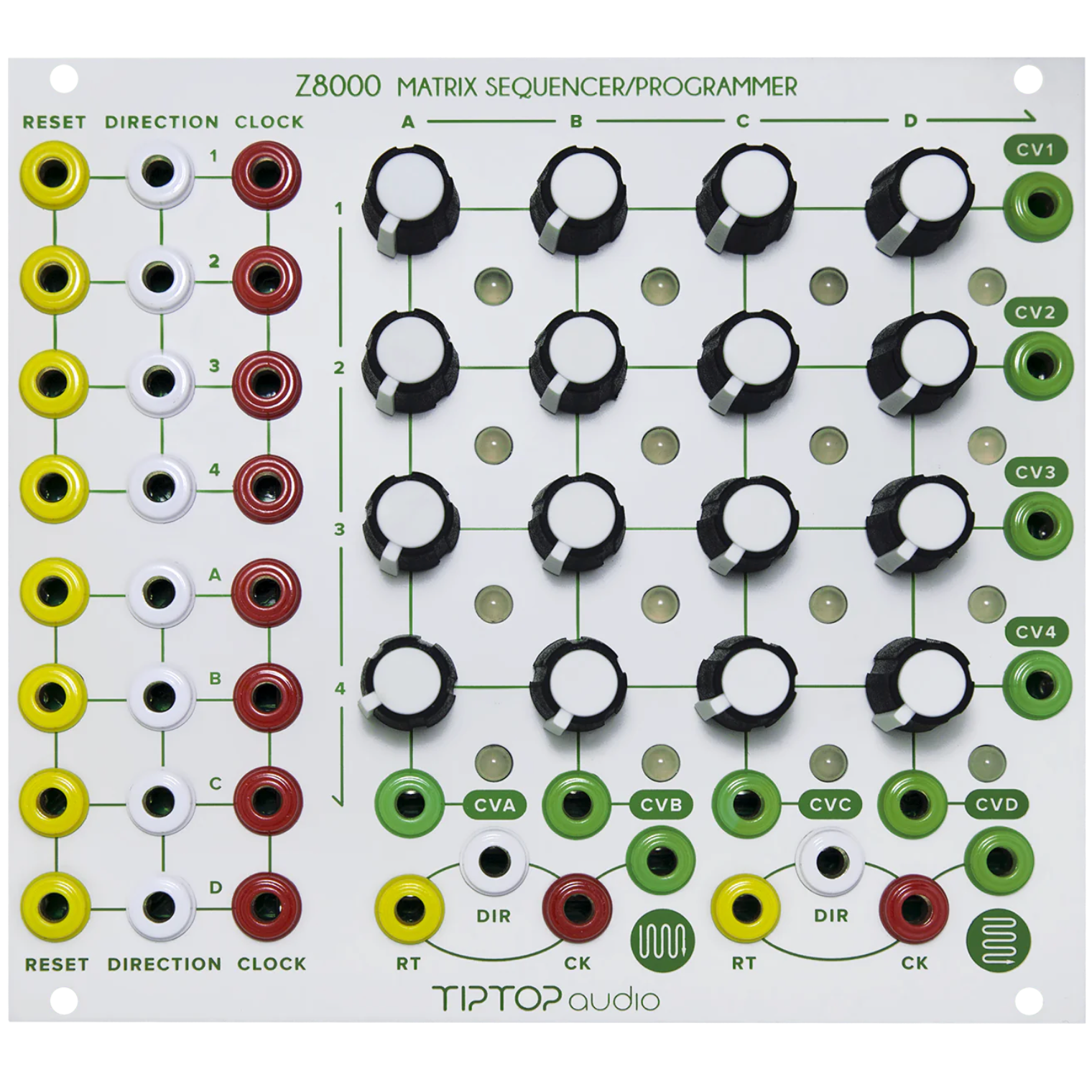

Tiptop Audio Z8000 Matrix Sequencer

The Z8000 Matrix Sequencer is a powerful modulation source in a compact package. The 16 knobs of the Z8000 are accessed by ten sequencers each with their own clock, direction and rest inputs. The ten sequencers are as follows:

• Four 4-step CV sequencers on the horizontal.
• Four 4-step CV sequencers on the vertical.
• One 16-step CV sequencer on the horizontal.
• One 16-step CV sequencer on the vertical.

With the Z8000, you can simultaneously modulate many parameters in your synthesizer polyrhythmically, with unprecedented motion. One know affects all 10CV outputs! Imagine modifying 10 parameters from one know, and all clock inputs can be driven at audio rates.

Your synthesizer is modular, so your sequencer should be too. The Z8000's open design allows you to create a custom sequencing environment to fit your personal needs. Add clock dividers, clock sequencers, switches, trigger sequencers and logic gages to create a completely unique system.

Controls: 16-knob Matrix

Inputs:

• Clock - 1/2/3/4/A/B/C/D/16H/16V
• Direction - 1/2/3/4/A/B/C/D/16H/16V
• Reset - 1/2/3/4/A/B/C/D/16H/16V

Output:

• CV Out - 1/2/3/4/A/B/C/D/16H/16V

Spec:

• Clock/Reset/Direction Minimum Voltage - 2V
• CV Out - 0V-10V
• Sequencer Type 4x4 H/V - Hybrid Analog/Digital
• Sequencer Type 1x16 H/V - Analog
• Power +/-12V or +/-15V
• Current - 70mA
• Width: 28HP
• Depth 59mm/2"
